Description

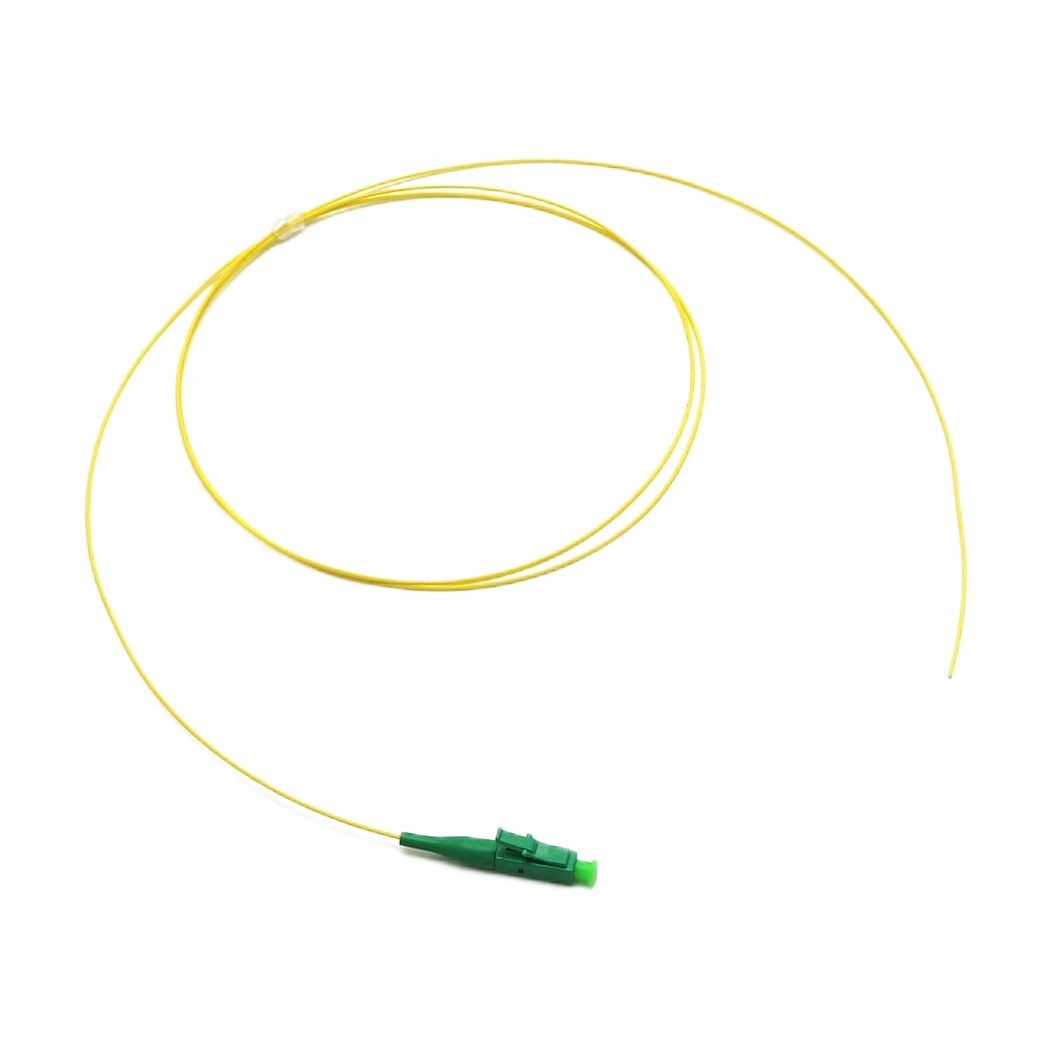

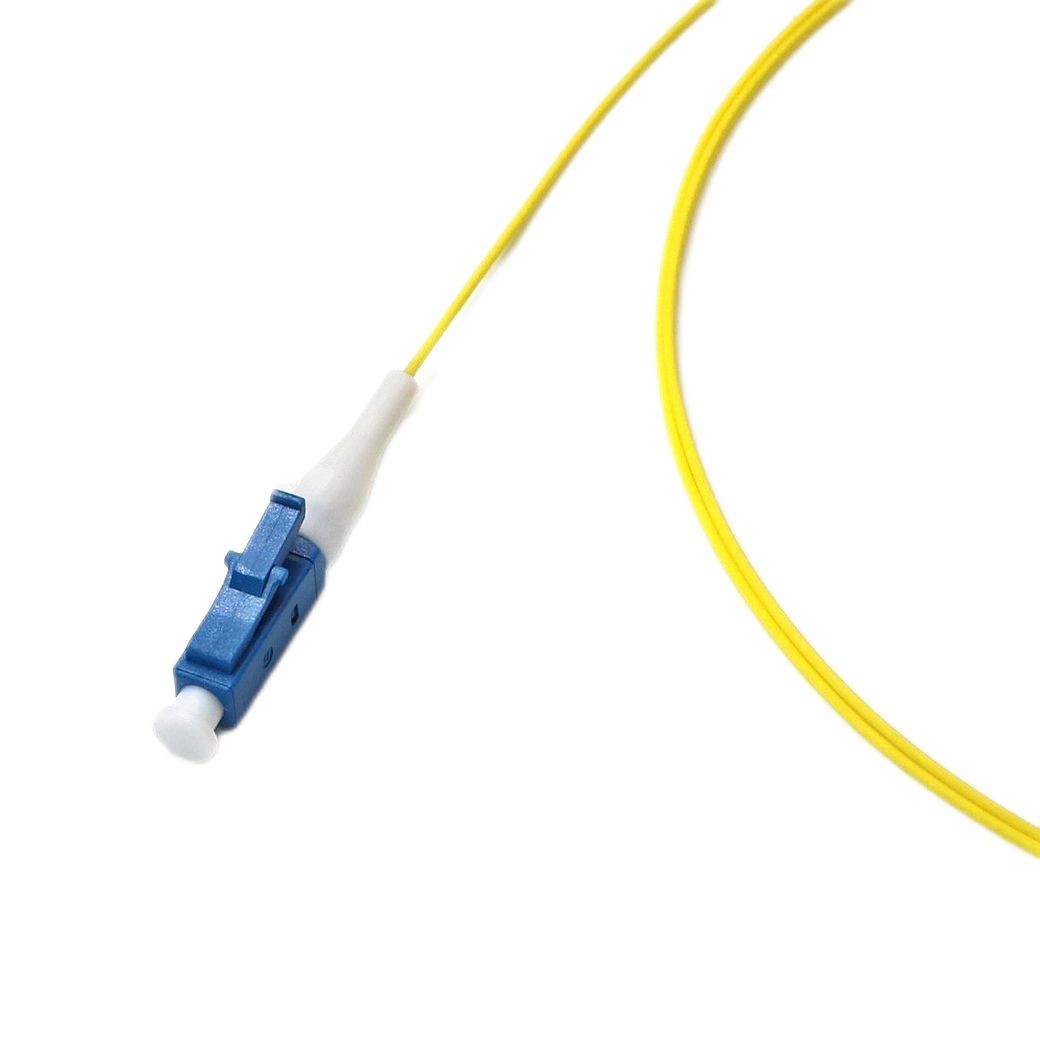

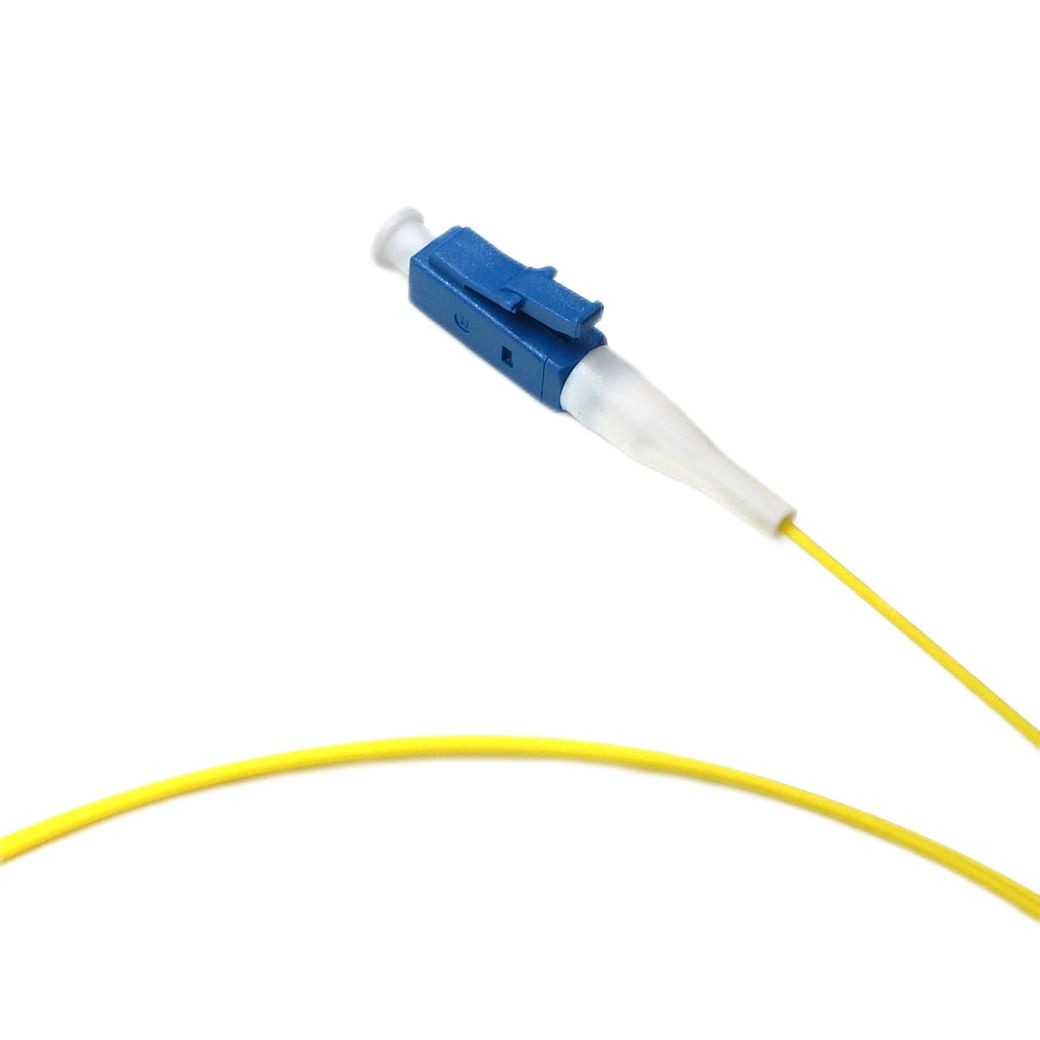

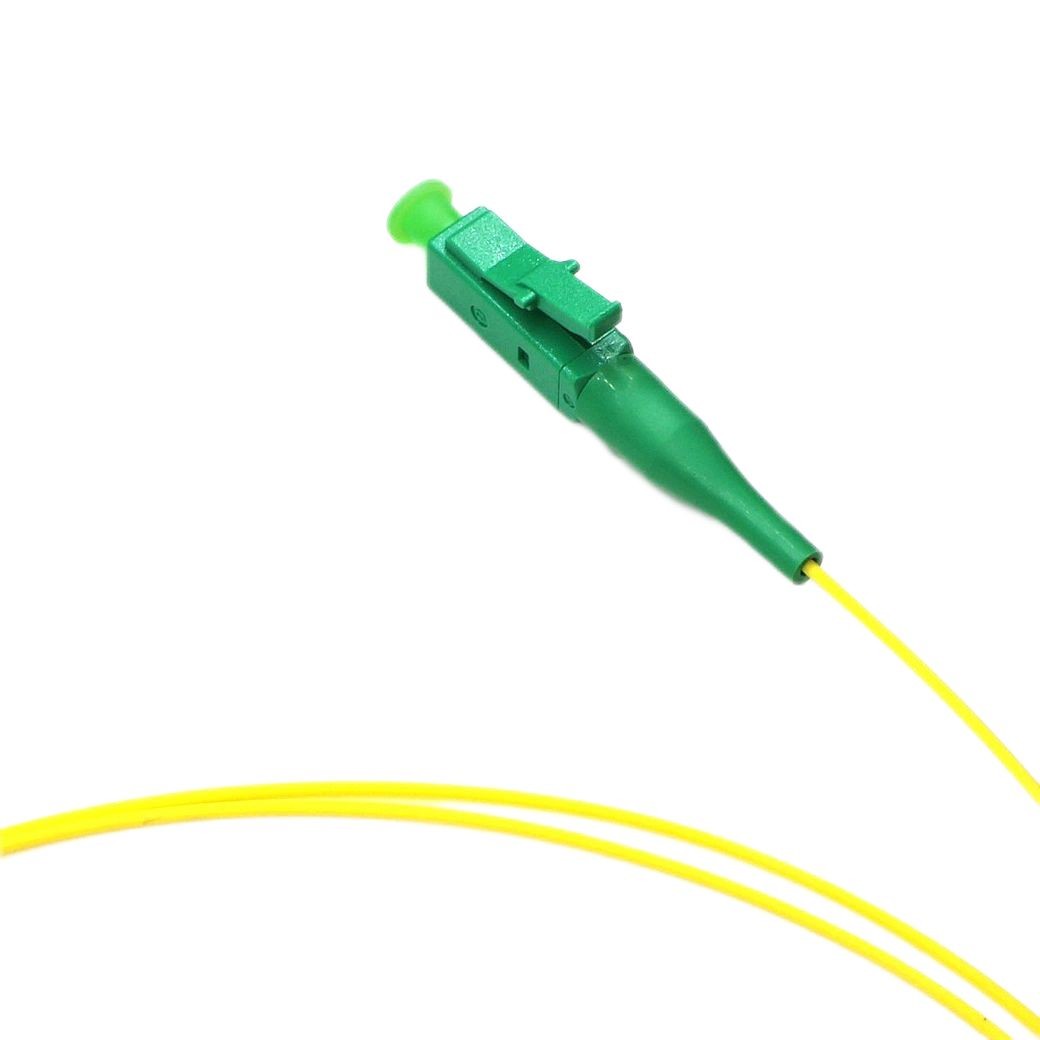

QYY- PVC LSZH LC Pigtail Fiber Optic 1~ 144 core
Features:
. Insertion Loss: <0.2dBLow insertion loss and back reflection loss
. Good exchangeability
. Good Durability
. High temperature stability
Specifications：
. Premise installations
. Optical access network
. Data processing networks
. FTTH, LAN, CATV, Test equipment
Specification:
|
Mode |
SM |
MM |
|
|
Polish |
UPC |
APC |
PC |
|
Insertion Loss |
Typical ≤0.2dB Maximum ≤0.3dB |
≤0.25dB |
|
|
Return Loss |
≥50dB |
≥65dB |
≥35dB |
|
Interchangeability |
≤0.2dB |
||
|
Repeatability |
≤0.1dB |
||
|
Durability |
≤0.2dB (1000 times mating) |
||
|
Tensile Strengh |
> 10kg |
||
|
Temperature |
≤0.2dB (-40+85 sustain 100 hours) |
||
|
Humidity |
≤0.2dB (+25+65 93 R.H.100 hours) |
||
Ordering Information
|
Boot (cable) Size |
Boot Color |
Fiber Type |
Cable number |
Application |
Length |
|
0.9mm |
Black |
9/125μm (SM) |
Simplex |
PC |
Customized |
|
2.0mm |
Green |
50/125μm (MM) |
Duplex |
APC |
|
|
3.0mm |
Red |
62.5/125μm (MM) |
Fan-out (4f) |
||
|
Fan-out (6f) |
|||||
|
Fan-out (8f) |
|||||
|
Fan-out (12f) |
