Description
QYY- GJXFH Drop Optical fiber drop cable
Feature：

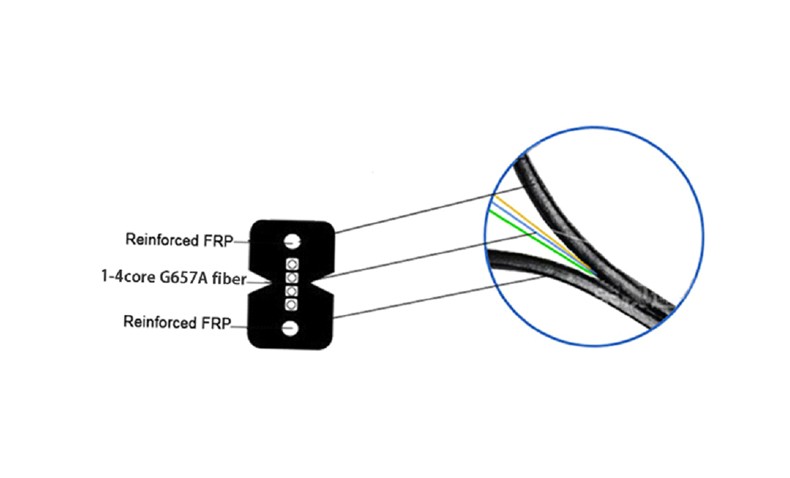

. Two parallel reinforced FRP strength members ensure good performance of crush resistance to protect the fiber
. Novel flute design, easily strip and splice, simplify the installation and maintenance
. Low smoke zero halogen and flame retardant sheath
. Single mode
(2.0±0.2)x(3.0±0.2)mm
Compliant with Telcordia GR-326-CORE specification
Specifications：
| Part Number | Type Drop Cable GJXH |
| Fiber Count | 1/2/4 core |
| Strength Member | Two parallel FRP/Steel wire |
| Cable Dimension (WxH approx.) | (2.0±0.2)x(3.0±0.2)mm |
| Out Jacket | LSZH |

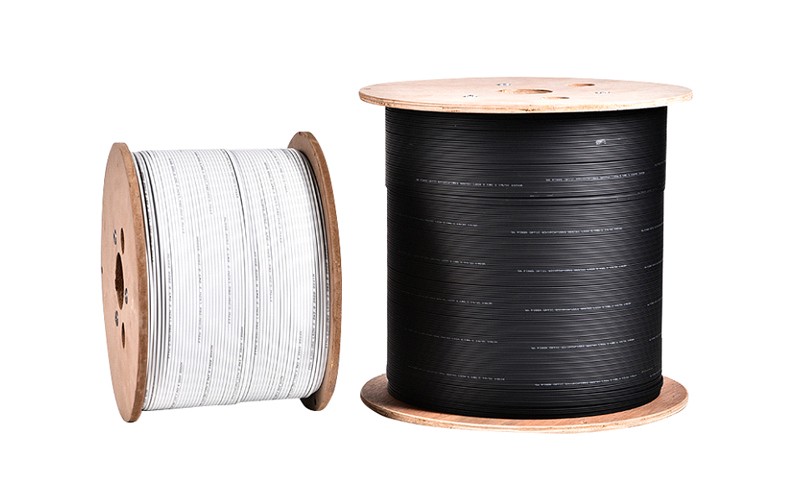

| Out Jacket color | black or white |
| Application | FTTH cable (Fiber to the home), used indoor, Access network |
Performance：
| NO. | Item | Requirement | |
| 1 | Allowable Tensile Strength | Short Term | 80N |
| Long Term | 40N | ||
| 2 | Allowable Crush Resistance | Long Term | 1000 (N/100mm) |
| Long Term | 500 (N/100mm) | ||
| 3 | Minimum Static Bend Radius | 10 times | |
| 4 | Minimum Dynamic Bend Radius | 20 times | |
| 5 | Operation Temperature | 40℃~+70℃ | |
| 6 | Nominal Cable | Diameter | (2.0±0.2)x(3.0±0.2)mm |
| Weight | 9.2kg/km | ||
| 7 | Fiber Color Code | 01- Blue, 02- Orange, 03- Green, 04- Brown | |
