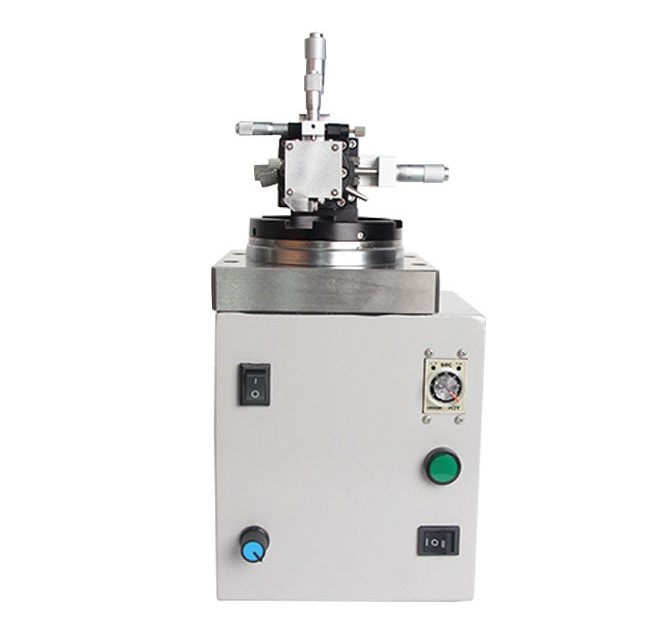

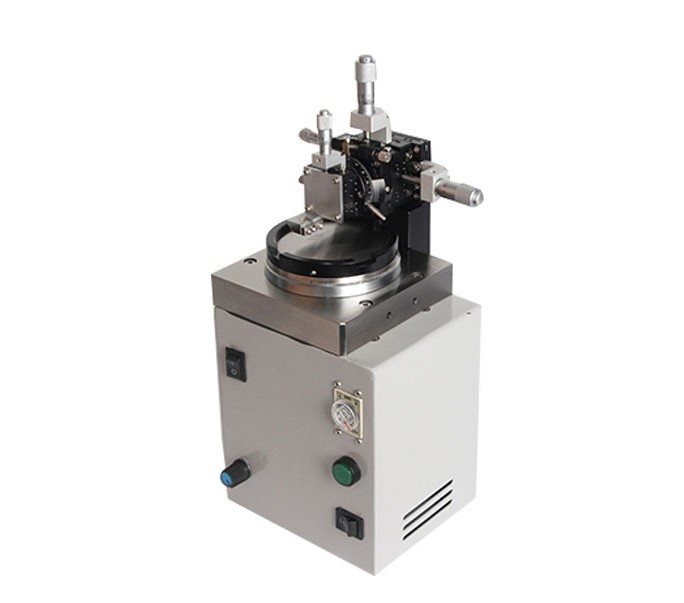

  • QYY- Bare Fiber Grinder NEOPL-1800A
  • QYY- Bare Fiber Grinder NEOPL-1800A
QYY- Bare Fiber Grinder NEOPL-1800A QYY- Bare Fiber Grinder NEOPL-1800A

QYY- Bare Fiber Grinder NEOPL-1800A

Inquiry Send Email

Description

QYY- Bare Fiber Grinder NEOPL-1800A


Features:

1. Designed specifically for bare fiber grinding, different diameter fibers are equipped with different plug adapters.
2. Supports PC face and APC face grinding.
3. Grind the APC bare fiber end face with an adjustable tilt angle of 0 to 60 degrees.
4. High definition magnifying glass, real-time monitoring of grinding status and appearance.
5. Suitable for optical fiber application research and development units and university laboratories.
6. The grinding fixture can be customized according to different optical fiber products.
7. Common applications include fiber optic arrays, optical waveguide devices, optical chips, and collimator components.
8. Optional tapered fiber grinding fixture can be used to grind the tapered end surface with bare fiber.

Parameter value:

 Machine size (L * W * H/mm)
150*200*250 Power Supply
220V AC, 50/60 Hz
Rubber pad diameter
70mm

LCD display size

24 inches

Outer diameter of rotary table 90mm Net weight of grinding machine
5 kg
The angle of the indexing circle can be

0-50 degrees

Net weight of monitoring magnifying glass

5 kg

Z-axis adjustable height 10mm LCD display weight
6.5 kg
Timing range
0-60 seconds adjustable Total Gross Weight

16.5 kg

Packaging method

Foam+carton

Package size (mm)
390 * 350 * 390mm * box/610 * 390 * 160m

Application:
Suitable for grinding special optical fibers, medical optical fibers, and energy optical fibers for communication devices
