Description

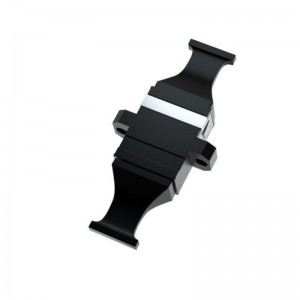

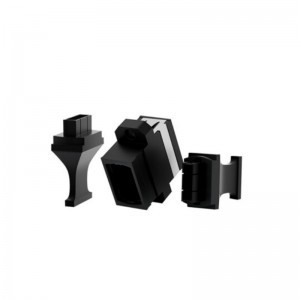

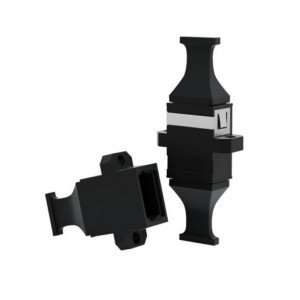

QYY- MTP/MPO 8/12/24 Fibers Single Mode Multimode Fiber Optic Adapter
Features:
. Reduced Insertion Loss by up to 50%
. Lightweight and durable plastic housings
. Each adapter 100% tested for low insertion loss
. High Durability
. High Temperature Stability
. Good Exchangeability
. High Density design cuts down on installation costs
Application：
. Transformable optical adapters are available with fiber optic connectors of different interface types on both ends and
provide a connection between APC faceplates. Duplex or multi-adapter adapts to increase installation density and save space.
Specification:
| Connector Type | MTP/MPO | Keyway | Opposed (Up-Down) |
|
Adapter Port |
Single |
Footprint |
SC |
| Fiber Mode | Single Mode/ Multimode | Fiber Count | 8/12/24 |
| Insertion Loss | ≤0.35dB | Durability | 1000 times |
| Flammability Rate | UL94-V0 | Working Temperature | -25~70°C |
