Description

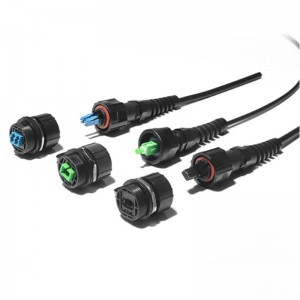

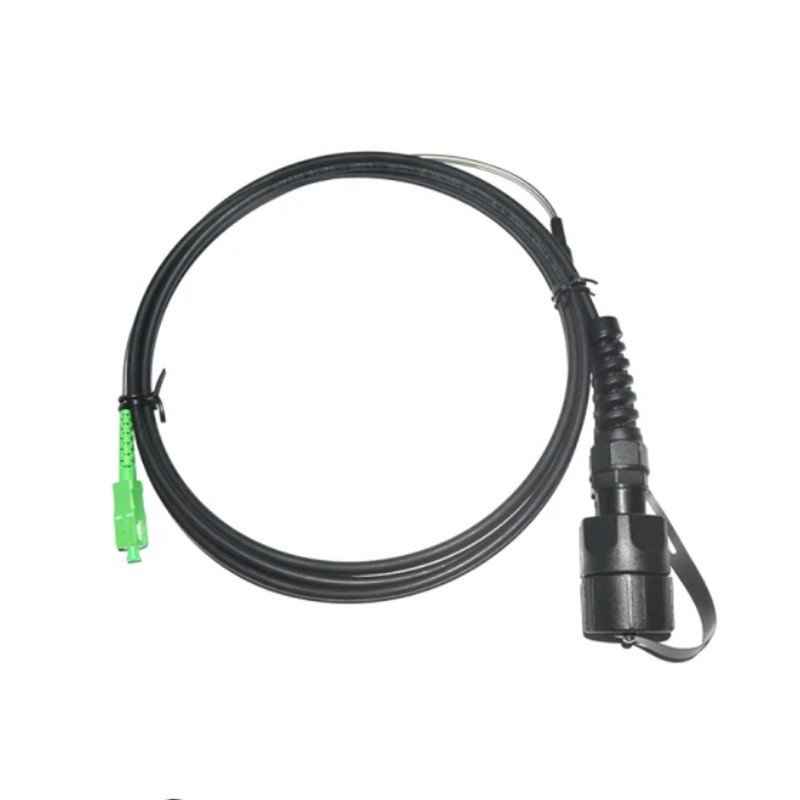

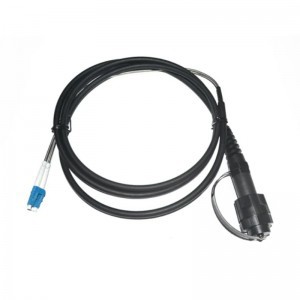

QYY- FTTA Fiber Optic Patch Cable Optical Waterproof SC Connector ODVA Outdoor Patch Cord
Features:
. Cost effective solution for in house termination
. IP67 water and dust protection
. Wide range of operational temperature for outside plant -40 to +85°C
. Different cable diameter can be available
. Intermatable to other Industrial LC adaptor per IEC 61076-3-106
. No need special tools for assembly
Specifications:
| Connector Type | LC/SC/MPO | Polish Type | UPC Or APC |
| Fiber Mode | OS1/OS2 9/125μm | Wavelength | 1310/1550nm |
| Insertion Loss | ≤0.3dB | Return Loss | UPC≥50dB; APC≥60dB |
| Fiber Count | Duplex/Simplex | Cable Diameter | 7.0mm, 2.0mm |
| Transport Package | Individual Box or According to Customer′s Request | Specification | RoHS, ISO9001 |
| Durability | 500times | Storage Temperature | -40~85°C |
Application:
. Multi-purpose Outdoor
. For connection between distribution box and RRH
. Deployment in Remote Radio Head cell tower applications
