Description

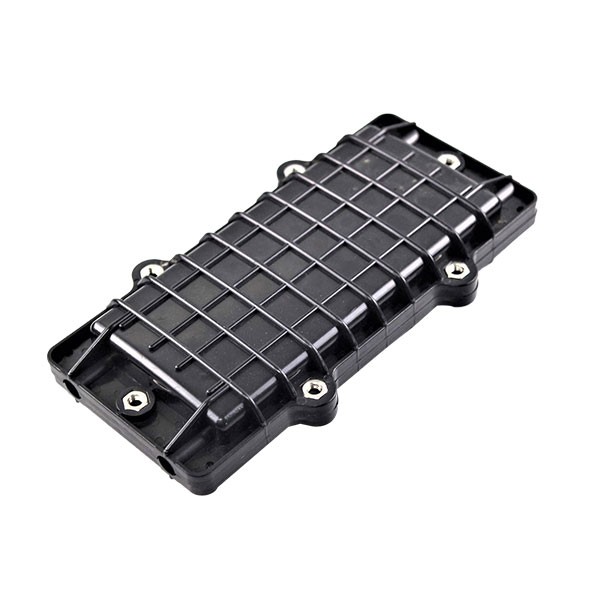

QYY- 24 Cores Fiber Optical Joint Closure Box
Feature：
. Mechanical seals, reusable. . It's easy to use.
. The material is stable, using first-hand new materials, and stainless steel screws are used inside.
. Suitable for a variety of different environments.
Specifications：
| Number of inlet and outlet cablesx | 4 (4 small round mouths) |
| Number of splice reels | 2 |
| Maximum capacity | 24芯 |
| Sealing | Mechanical seals |
| Applicable range of fiber optic cable diameter | 8~14mm(small mouth); |
| Dimensions (mm) | 302x133x55 |
| Weight (kg) | 1.0-1.2 |
| material | StrengthABS |
| Ambient temperature | 30℃~60℃； |
| atmospheric pressure | 70kPa~106kPa； |
| Sealing level | ip68 |
Applications：
. It is used for direct burial, pipeline and overhead.
. Used in telecommunications, mobile, radio and television, highways, broadband companies.
