QYY- Fiber Optic Cable GJYXHS G657A2 OM3 OM4 Duct Drop

  • Fiber Type： G 652D,G 657A1,G 657A2,50/125,62.5/125,OM3,OM4
  • Cable diameter(mm) ：7.３±0.3,7.４±0.3
  • Weight (kg/km) ：60
  • Attenuation：1310/1550nm,850/1300nm
    • Outdoor optical cable，indoor cable ， fiber optic cable
    Inquiry Send Email

    Description

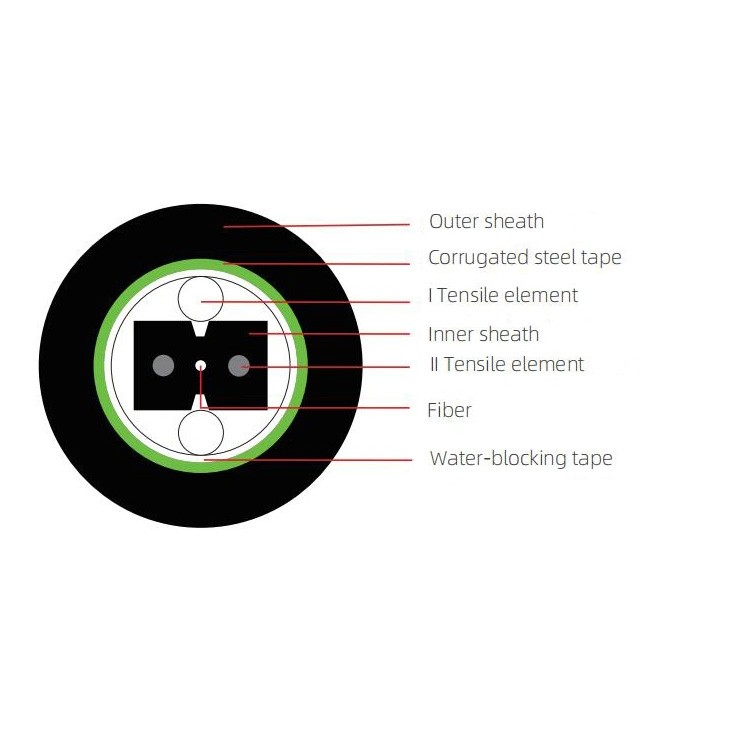

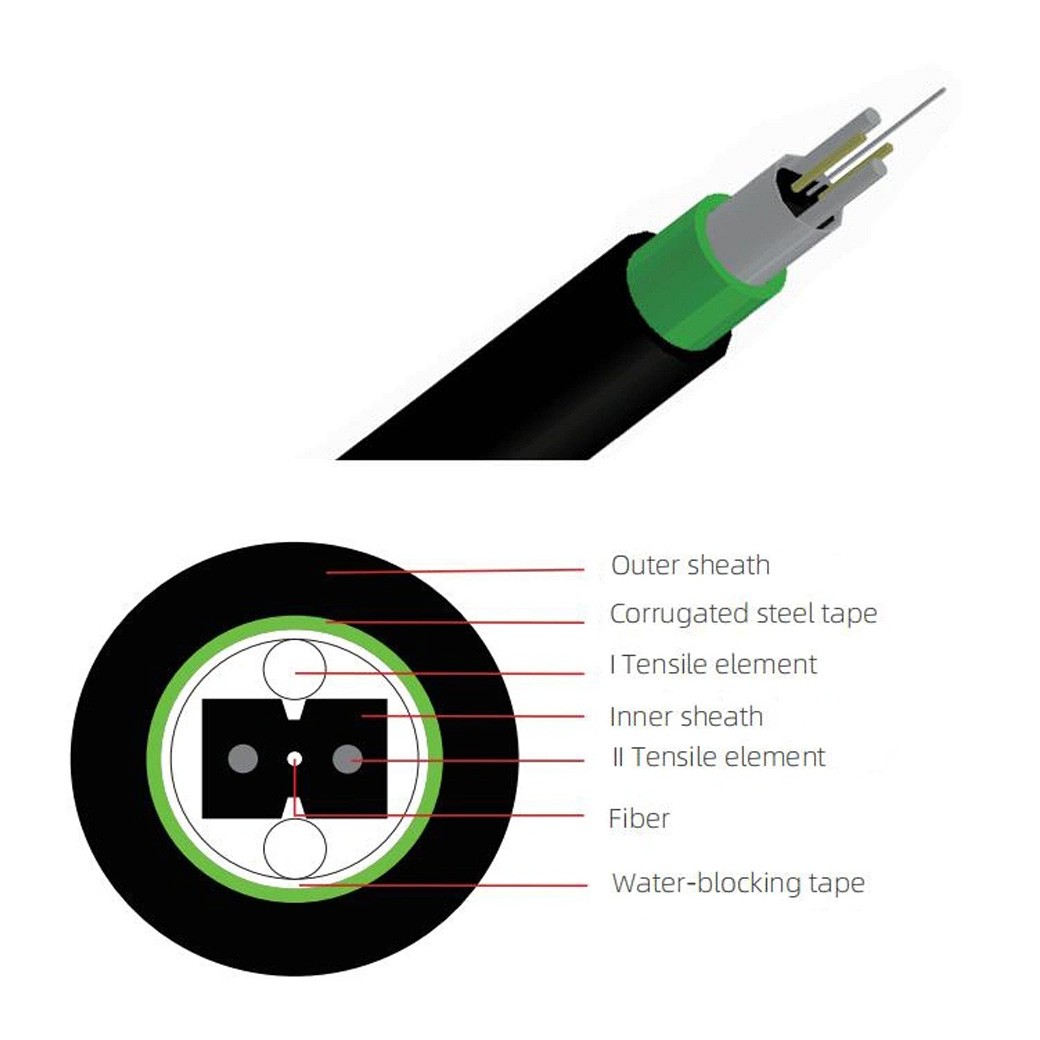

    QYY- Fiber Optic Cable GJYXHS G657A2 OM3 OM4 Duct Drop



    Features：

    . Special bend resistant optical fiber provides greater bandwidth and enhances network transmission characteristics.

    . Two parallel strength memebr make the optical cable have good compressive performance and protect the optical fiber.
    . The optical cable has the advantages of simple structure, light weight and strong practicability.
    . Unique groove design, easy to peel, easy to connect, simplify installation and maintenance.
    . Low smoke halogen-free flame retardant sheath, environmental protection.
    . PE outer sheath has good UV resistance.
    . Corrugated steel tape longitudinally covers cable core and provides good crush resistance.





    Optical Specification：

    GJYXHS Fiber type

    Attenuation

    Full injection bandwidth

    Effective bandwidth

    10G Ethernet link length

    imum bending radius

    Condition

    1310/1550nm

    850/1300nm

    850/1300nm

    850nm

    850nm

    /

    Typical value

    Max

    Typical value

    Max

    Unit

    dB/km

    dB/km

    dB/km

    dB/km

    MHZ.km

    MHZ.km

    m

    mm

    G 652D

    0.36/0.22

    0.5/0.4

    -

    -

    -

    -

    -

    16

    G 657A1

    0.36/0.22

    0.5/0.4

    -

    -

    -

    -

    -

    10

    G 657A2

    0.36/0.22

    0.5/0.4

    -

    -

    -

    -

    -

    7.5

    50/125

    -

    -

    3.0/1.0

    3.5/1.5

    ≥500/500

    -

    -

    30

    62.5/125

    -

    -

    3.0/1.0

    3.5/1.5

    ≥200/500

    -

    30

    OM3

    -

    -

    3.0/1.0

    3.5/1.5

    ≥1500/500

    ≥2000

    ≤300

    30

    OM4

    -

    -

    3.0/1.0

    3.5/1.5

    ≥3500/500

    ≥4700

    ≤550

    30


    Mechanical & Environmental Performance：

    Cable model

    Cable diameter

    (mm)

    Weight (kg/km)

    Allowable tensile force

    Long / Short（N）

    Allow squash Force

    Long / Short（N）

    Bending radius

    Static / dynamic

    （mm）

    GJYXHS - 1

    7.３±0.3

    60

    300/600

    1000/2000

    10D/20D

    GJYXHS - 2

    7.４±0.3

    60

    300/600

    1000/2000

    10D/20D

    Operating temperature
    		-20~+60℃
    		 Storage temperature
    		-20~+60℃


    Application：
