Description

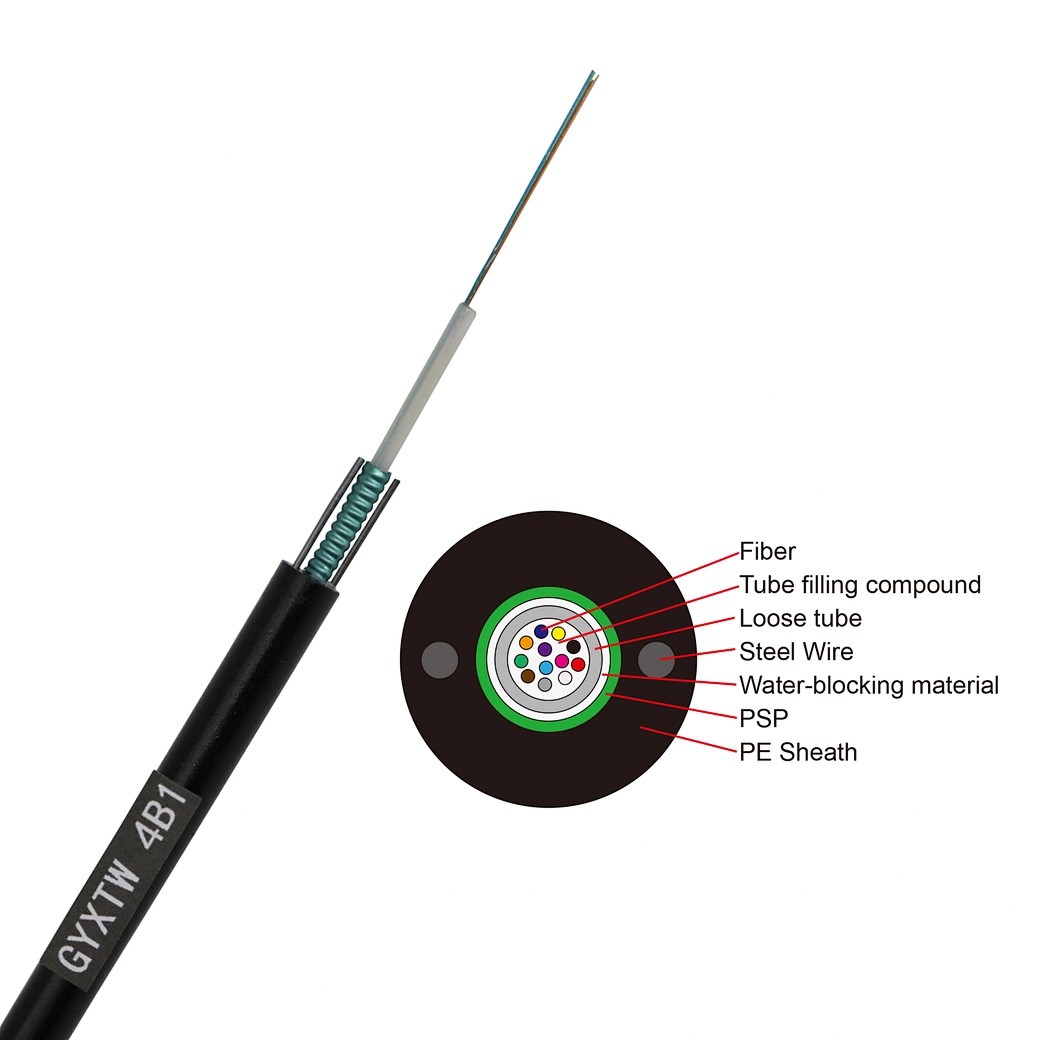

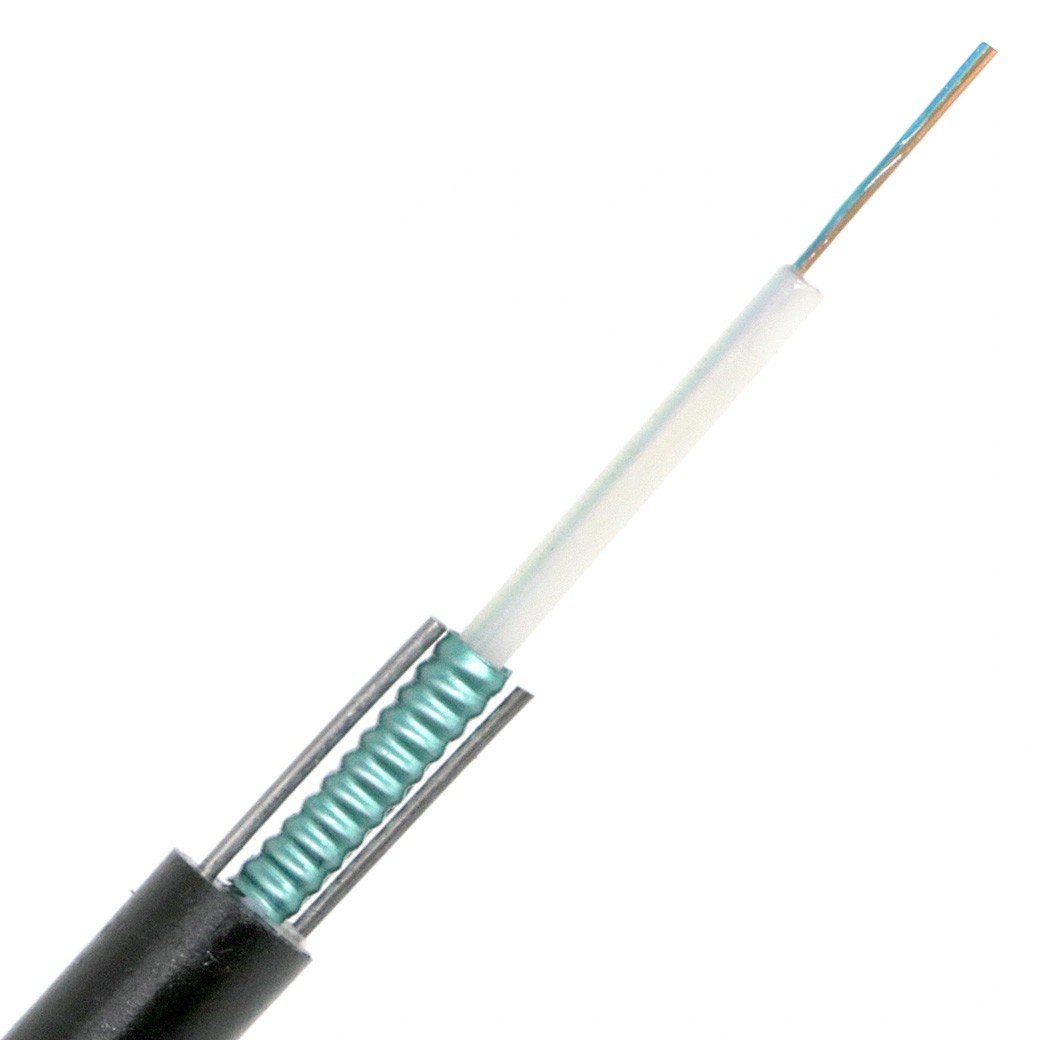

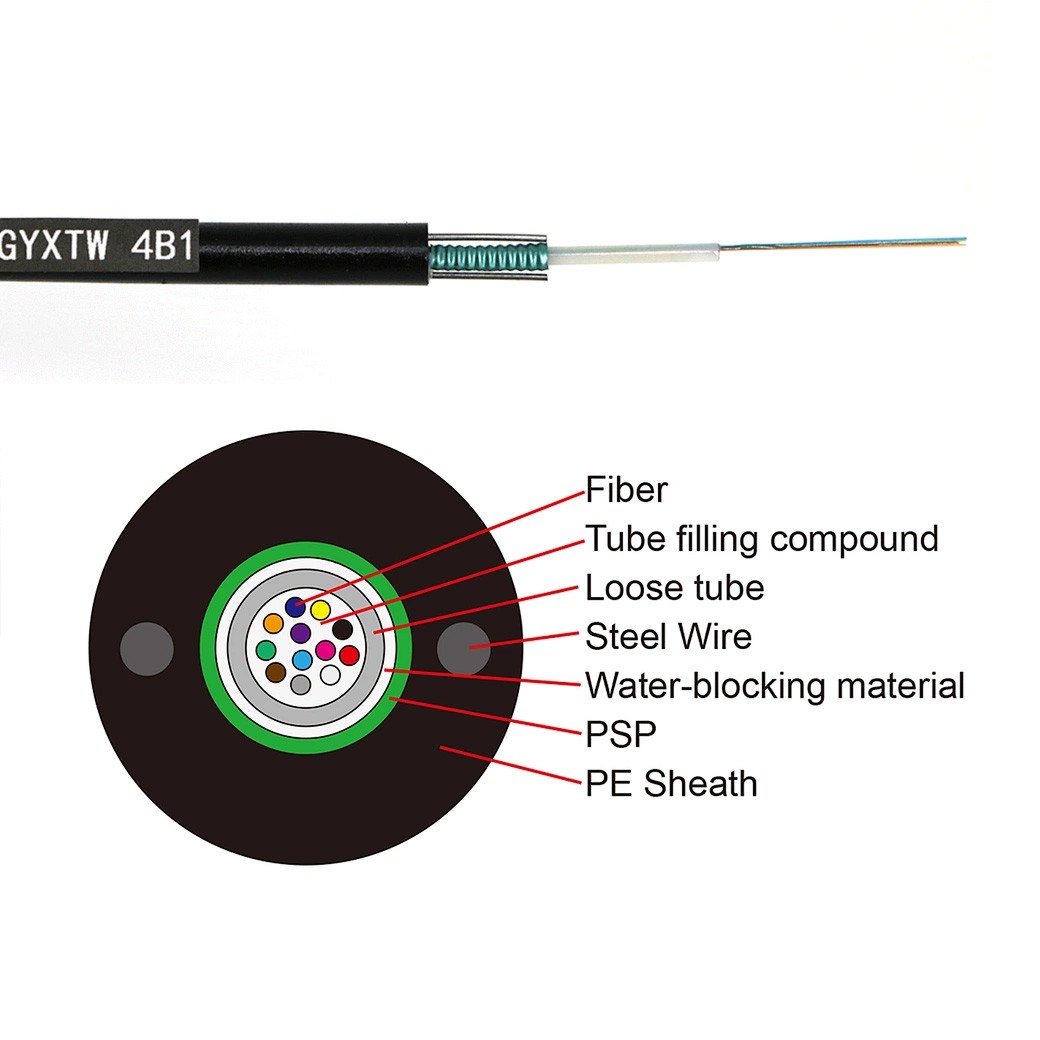

QYY- Unitube Light-armored Cable GYXTW Outdoor Multimode
Features：
. Uni-tube gel-filled construction for superior fiber protection.
. Metallic armor to protect cable from rodent attack and mechanical damage.
. Embedded steel wire provide desirable tensile strength and crush resistance.
. Compact, easy to install.
. UV and waterproof design.
Specification：
| Fiber Type | G.652 | G.655 | 50/125^m | 62.5/125^m | |
|
Attenuation (+20X) |
850 nm | <3.0 dB/km | <3.3 dB/km | ||
| 1300 nm | <1.0 dB/km | <1.0 dB/km | |||
| 1310 nm | <0.36 dB/km | <0.40 dB/km | |||
| 1550 nm | <0.22 dB/km | <0.23 dB/km | |||
| Bandwidth | 850 nm | >500 MHz-km | >200 Mhz-km | ||
| 1300 nm | >500 MHz-km | >500 Mhz-km | |||
| Numerical Aperture | 0.200±0.015 NA | 0.275±0.015 NA | |||
| Cable Cut-off Wavelength cc | <1260 nm |
<1450 nm |
|||
Cable Mechanical Characteristic：
|
Fiber Count |
Nominal Diameter (mm) |
Nominal Weight (kg/km) |
Allowable Tensile Load (N) |
Allowable Crush Resistance
(N/100mm)
|
||
| Short Term | Long Term | Short Term | Long Term | |||
| 2~12 | 8.6 | 95 | 1500 | 600 | 1000 | 300 |
| 14~24 | 9.0 | 110 | 1500 | 600 | 1000 | 300 |
Application：
. Interbuilding voice or data communication.
. Installed in duct, underground conduit.
. FTTx/FTTH/FTTD
