Description

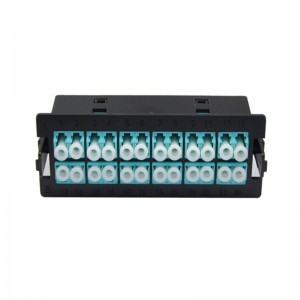

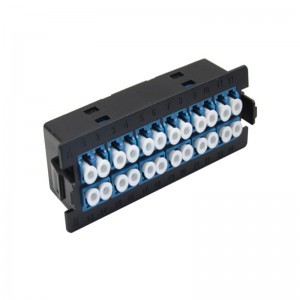

QYY- Fiber Adapter Panel 24 Fibers Single Mode/Multimode 12x LC/UPC Duplex
Features:
. Fiber Count: 24 Fibers
. Connection Type: 12x Single Mode/Multimode LC Duplex
. Adapter Color: Blue, Aqua or Grey
. Dimensions: 30mm*95mm
. Offered in LC, SC, FC,ST, MTP, and Blank Styles
. Clear Numbering for Quick Fiber Identification
. Use Zirconia Ceramic Split Sleeves for Higher Performance
. Tool-less snap in installation for easier moves, adds and changes
. For laser optimized multimode and single mode applications
Application：
. Local Area Network
. FTTH and FTTx
Specification:
|
No.of Adapter/Port |
12 |
Fiber Count |
24 Fibers |
| Adapter Type | LC Duplex | Fiber Mode | Multimode, Single Mode |
| Material of Sleeve | Zirconia Ceramic | Material of Plate | ABS Plastic |
| Insertion Loss | ≤0.2dB (0.1dB Typ.) | Durability | 500 mating cycles |

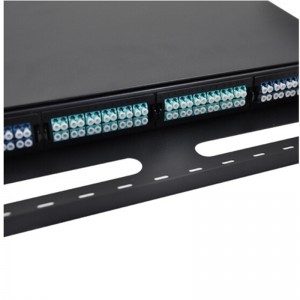

| Dimensions (HxW) | 95MM*30MM | Application | Matching for (1U,2U,4U) Enclosures |
