Description

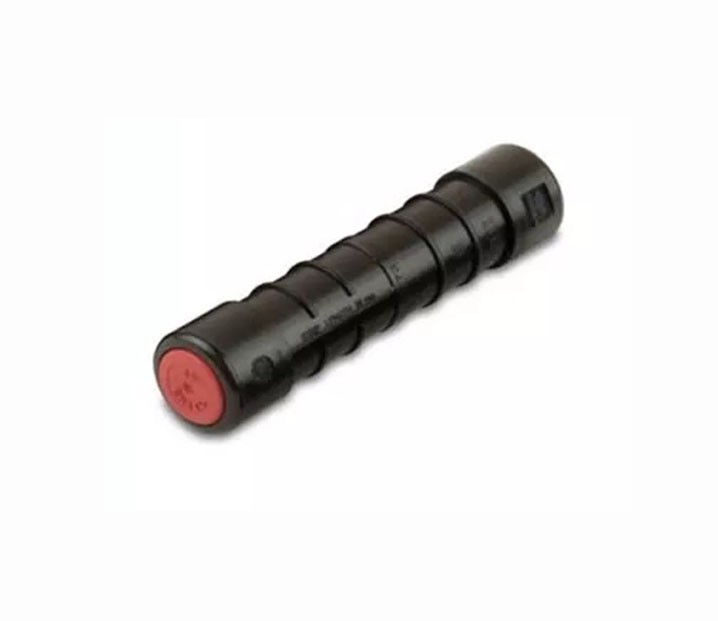

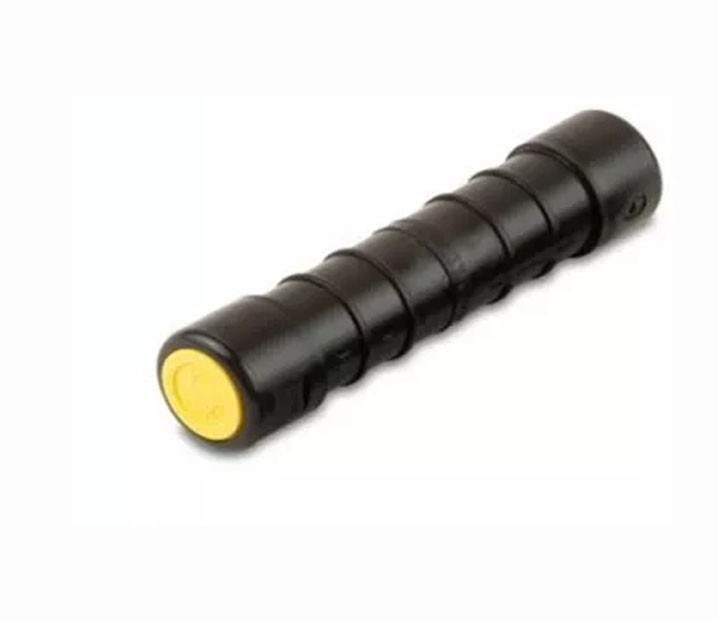

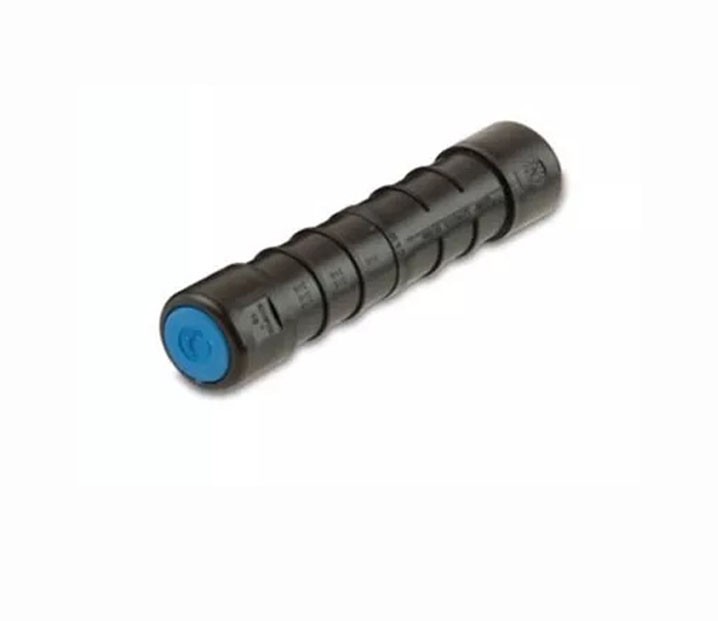

QYY- 50mm2 standard pre insulated bushing
Specification：
1.Aluminum (phase) or aluminum alloy (neutral) sleeve with a stop in the middle.
2.Black thermoplastic sealed with a flexible elastomer ring.
3.Neutral contact grease in tube improves contact area and protects
Aluminum resists oxidation.
4.The crimping is done on the plastic part
5.According to the marking on the sleeve
Feature:
1.They are waterproof and pass a dielectric test to 6 kV in water.
2.50% mechanical open phase load.
3.100 % mechanically neutral courier disconnects the load.
4.80% of the conductor load is on itself
5.Supporting version (M type Alus)

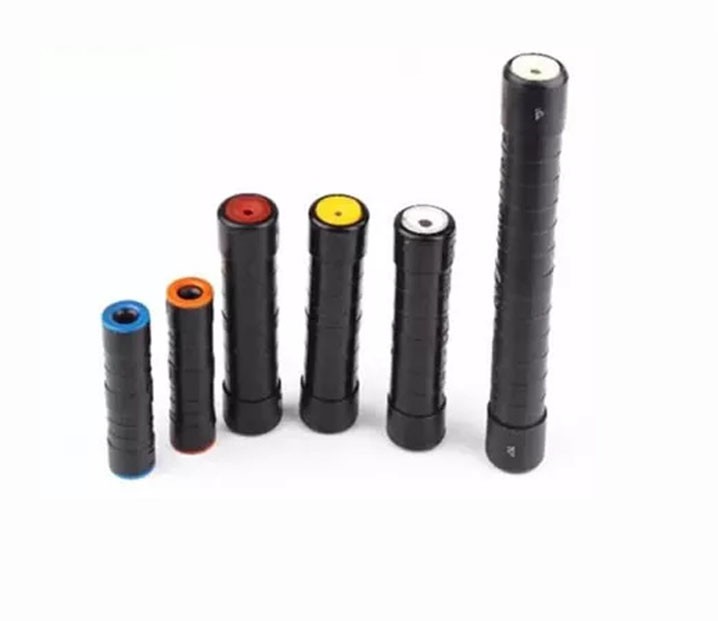

6.Color codes allow for easy inspection
7.Test voltage in water 6 kV / 50 Hz / 1 minute.
| Type | Cable Size(mm²) | Plastic Sleeve Diameter(mm) | Length | |
| A | B | C | L | |
| MJPT 16/16 | 16 | 16 | 16 | 70.5 |
| MJPT 25/25 | 25 | 25 | 16 | 70.5 |
| MJPT 35/35 | 35 | 35 | 20 | 98.5 |
| MJPT 50/50 | 50 | 50 | 20 | 98.5 |
| MJPT 70/70 | 70 | 70 | 20 | 98.5 |
| MJPT 95/95 | 95 | 95 | 20 | 98.5 |
