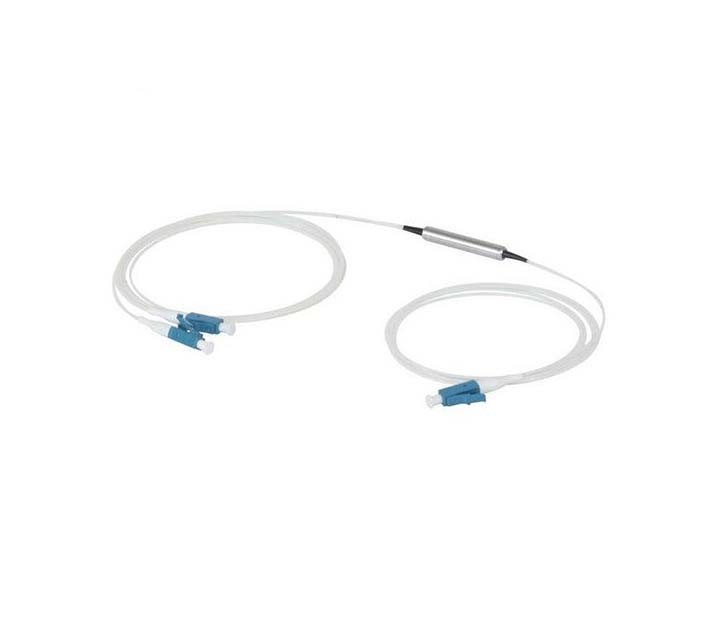

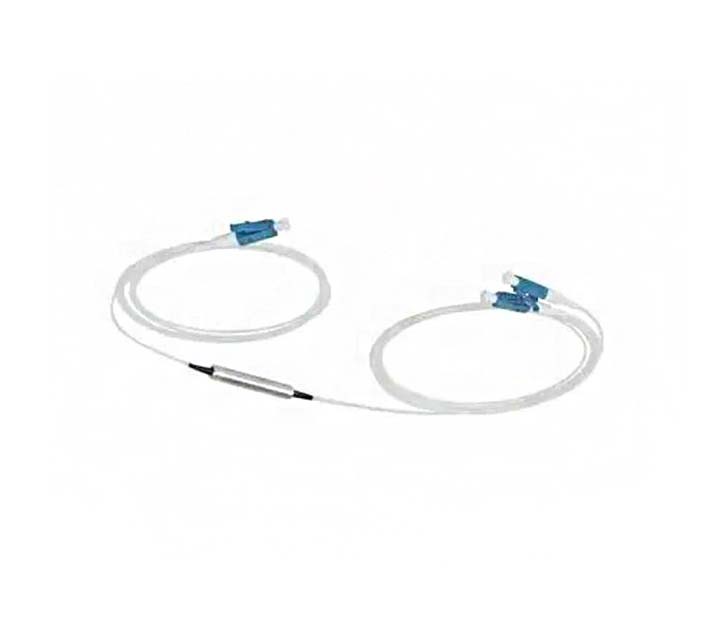

QYY-Multiplexer (CWDM) Filter Single Mode

Model: Multiplexer (CWDM) Filter Single Mode

Channel Wavelength (nm)：1530.33~1560.61（21~59 ITU grid）

Mux / Demux Central Wavelength Accuracy (nm)：± 0.5

Min Channel Spacing (GHz)：100

QYY-Multiplexer (CWDM) Filter Single Mode

feature:

1.Wide pass band

2.Low insertion loss

3.High Channel isolation

4.Low PDLV

Application:

1.CWDM Module

2.Security & Protection System

3.FTTH

4.CATV

Specification:

	Mux	Demux
Channel Wavelength (nm)	1530.33~1560.61（21~59 ITU grid）
1530.33~1560.61（21~59 ITU grid）	± 0.5
Min Channel Spacing (GHz)	100
Passband (@-0.5dB bandwidth)(nm)	>0.22
Insertion Loss（dB)	Add/Drop Ch.	≤1.0
	Reflective Ch.	≤0.4
Passband Flatness（dB）	≤0.3
Add/Drop channelIsolation(dB)	Adjacent Channel	N/A /≥25
	Non-adjacent Channel	N/A /≥35
Reflective Isolation（dB)	≥12
Insertion Loss Temperature (dB/°C )	≤0.003
Wavelength Temperature Shifting (nm/ °C )	≤0.002
PDL (dB)	≤0.1
PMD (ps)	≤0.1
Directivity (dB)	≥50
Return Loss (dB)	≥45
Rated power (mW)	500
Operation Temperature (°C)	0 ~ +70
Storage Temperature (°C)	-40 ~ +85
Dimension (mm)	W90x D20x H10
