Description

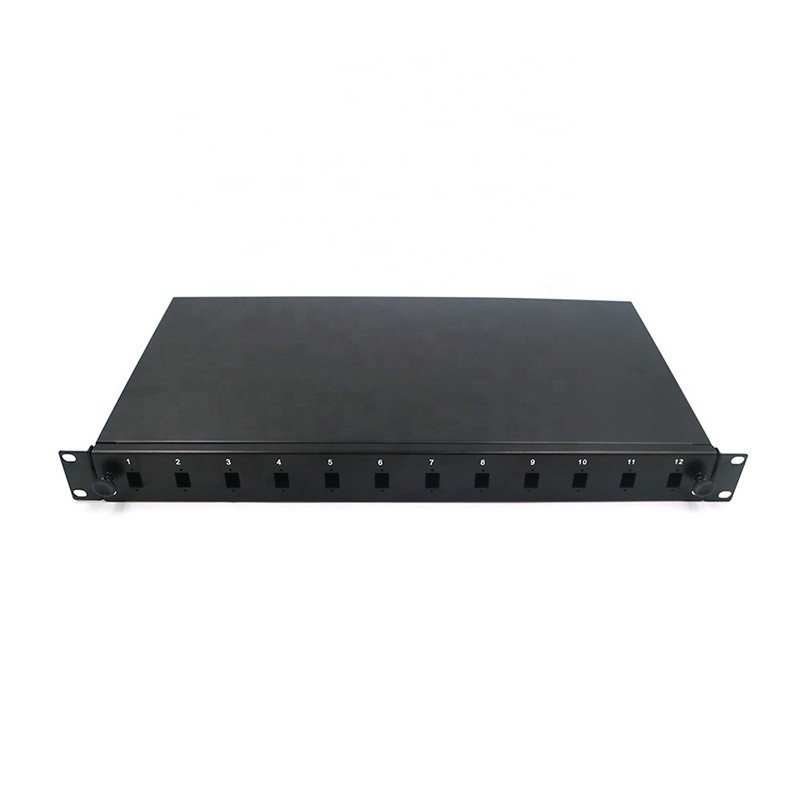

QYY- 12 core patch panels can accommodate 24 LC adapters
Features:
. Made of cold-rolling steel, static spreading-plastic, small dimension and exquisite and easy for operation
. The box has a pothook, which is convenient to install and dismantle
. The splice tray could be piled one upon another, flexible to turn; the curve radius of the coiled spear fibers should be guaranteed to be over 37.5mm in the splice tray
. The box is of unique structure, reasonable layout, and has adequate room for operation
. Adjustable clamp seal ring and reinforce configuration, which could adjust different sizes of cables flexibly to make sure the cables are clamp tightly
. The indoor type is of excellent seal performance, which could prevent water from entering effectively
. Can be installed with LC adapter
. Up to 2x12 cores splice capacity

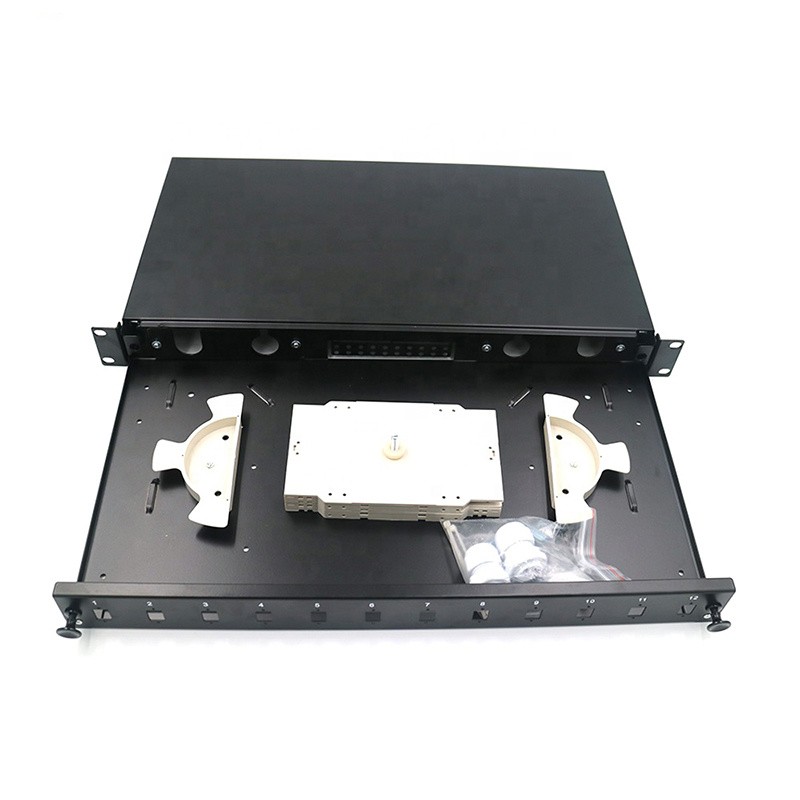

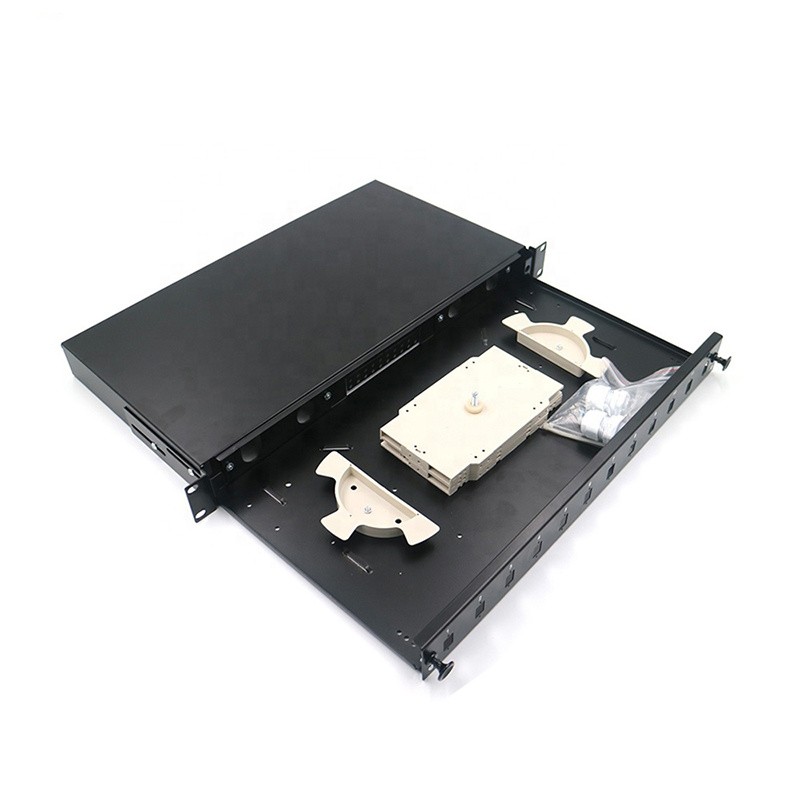

. Sliding design
Application:
. Local Area Network
. CATV Network
. FTTx System
. Wide Area Network
. Test Instruments
Specification:
| Dimensions(W*H*D) | 430*250*1U |
| Adapter Capacity | 12xSC;24xLC |
| Max Capacity | 24Core |
| Optional Accessories | Adapters, pigtails |
| Insert Loss | ≤0.2dB |
| UPC Return Loss | ≥50dB |
| APC Return Loss | ≥60dB |
| Weight | 2.8KG |
