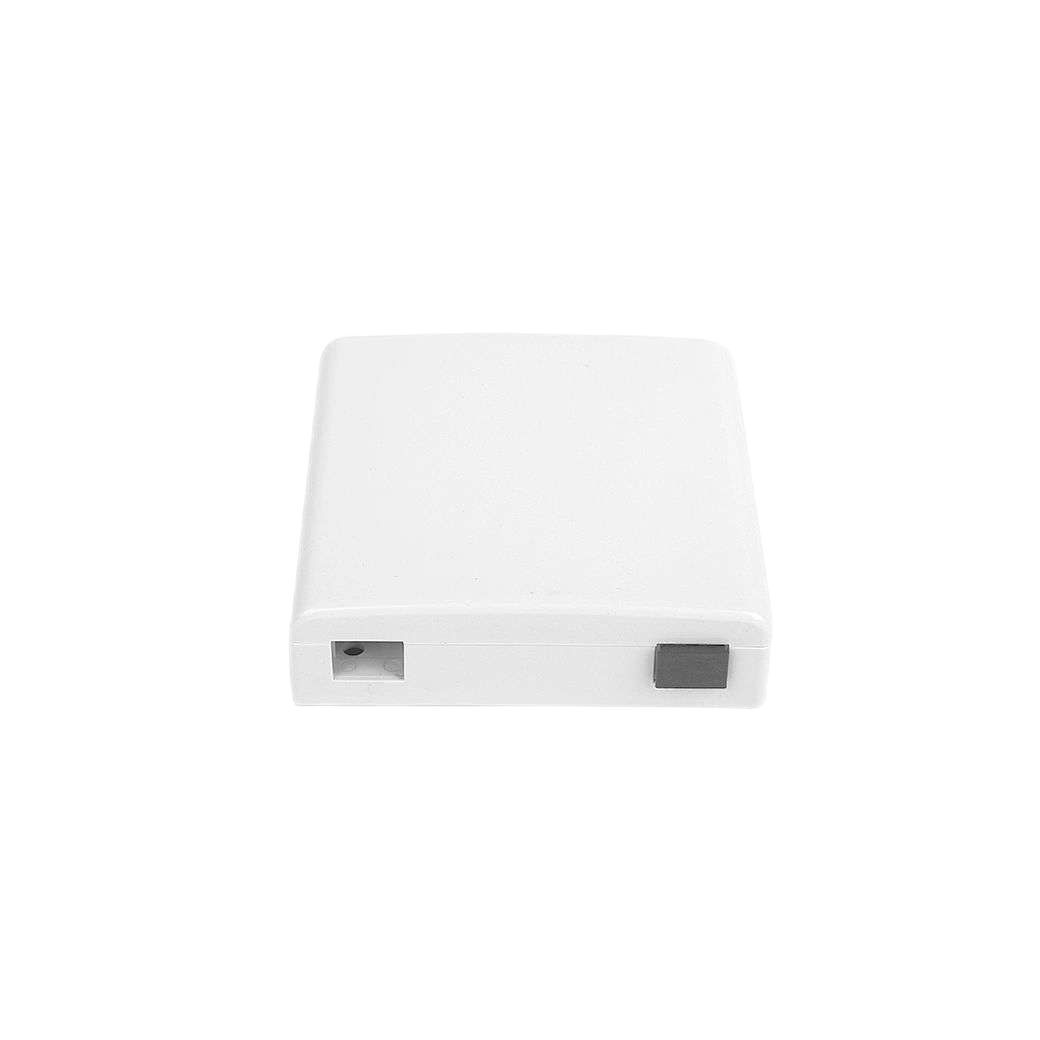

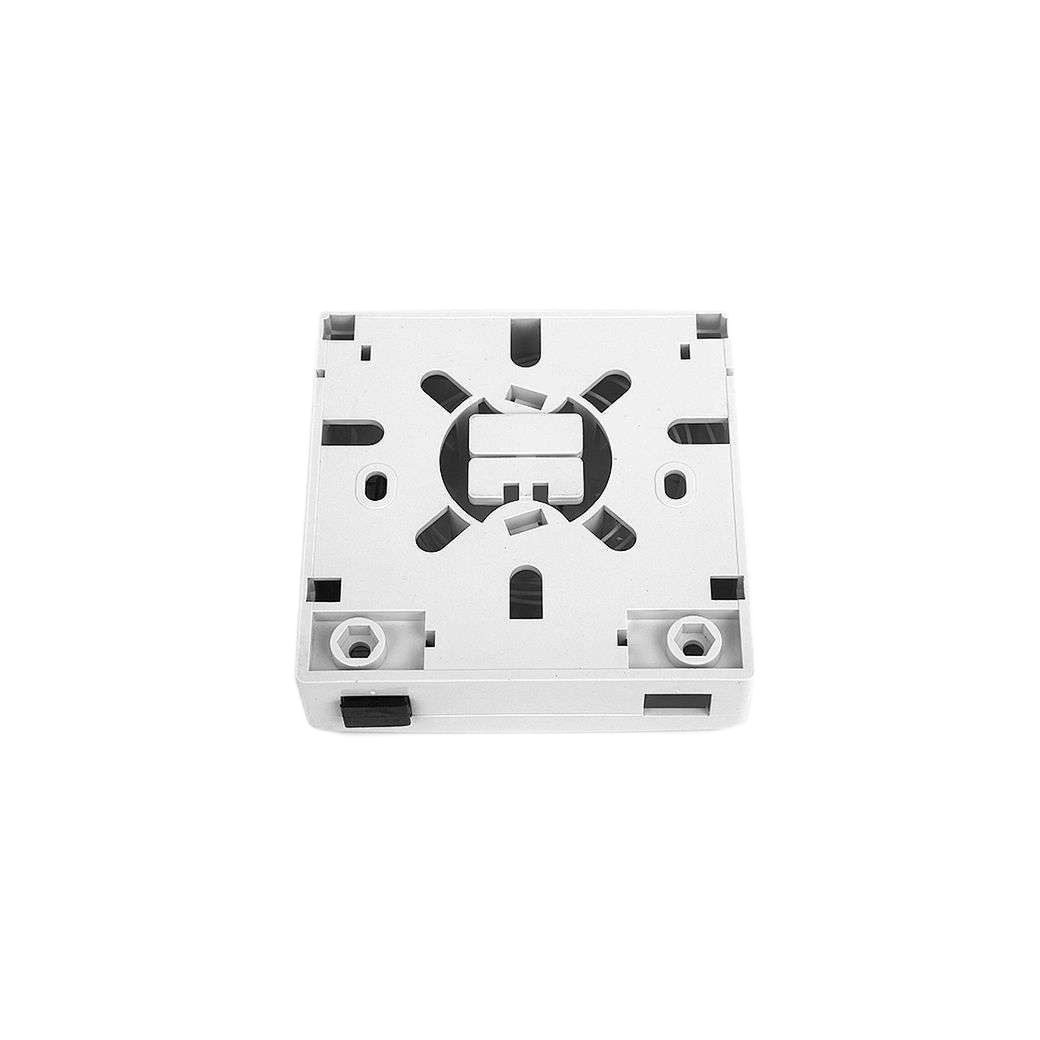

QYY- 86 Type Optical Termination Box With 2 Port Inlet Outlet

QYY- 86 Type Optical Termination Box With 2 Port Inlet Outlet

Mode：Indoor Wall Mounted

Connector ：SC-SX

Material ：PC, ABS

Port ：1 Core

Description

QYY- 86 Type Optical Termination Box With 2 Port Inlet Outlet

Features:

. Economic design
. Ability to allow cables to enter from both sides of the unit

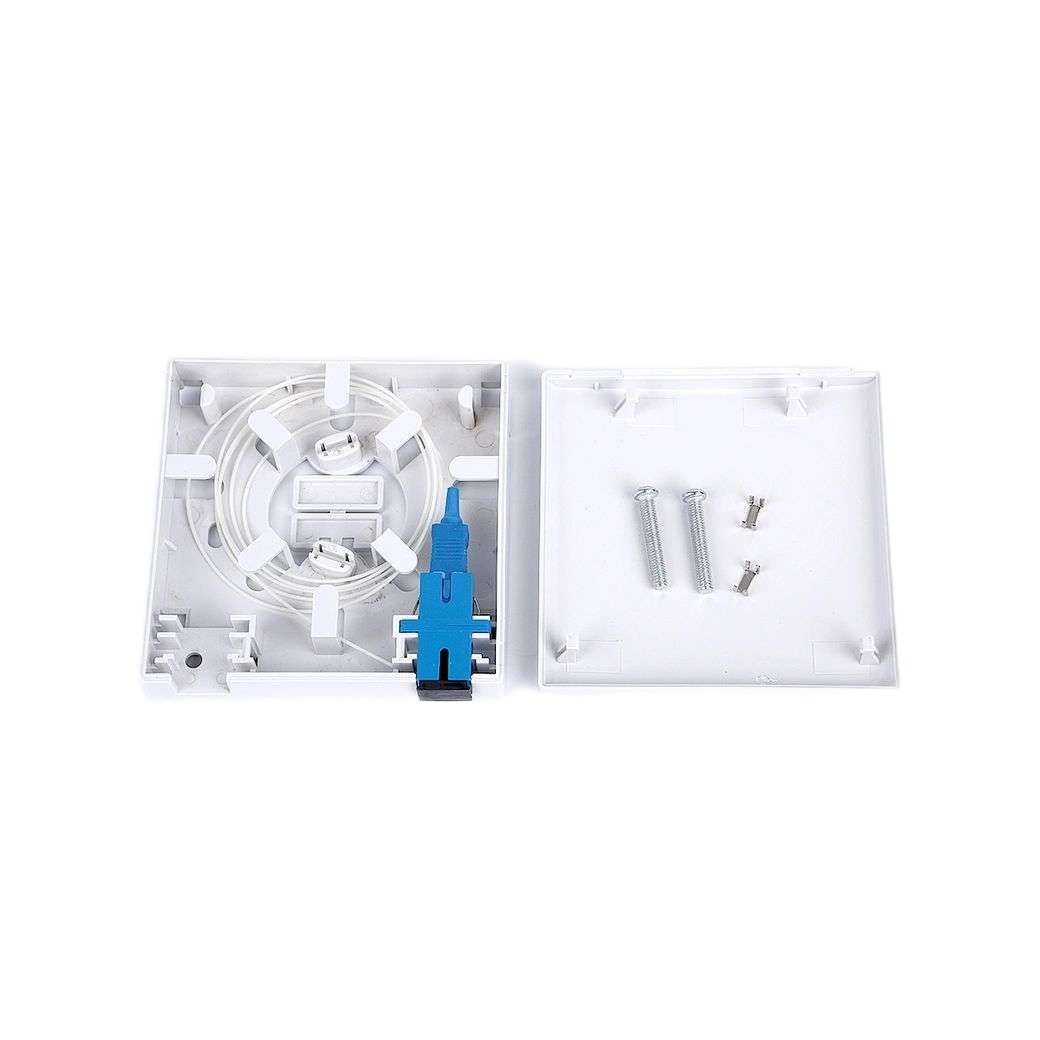

. Removable cover for easy access
. compact, low profile, wall mounted unit used for small and large business premises

Application：

. CATV networks
. Local area networks
. Data communications networks
. Widely used in FTTH access network

Specification:

Type/Fiber Optic Terminal Boxes	FTB-86A	FTB-86B	FTB-02	FTB-04
Size(mm)	868623	869016	20511535	15011030
Cable diameter(mm)	Φ 3	Φ 3	Φ 7 – Φ 14	Φ 7 – Φ 10
Cable ports	2	2	3	5
Max capacity(core)	2	2	2	4
