QYY-36 48 72 96 144 288 Core Single Mode GYTS

QYY-36 48 72 96 144 288 Core Single Mode GYTS

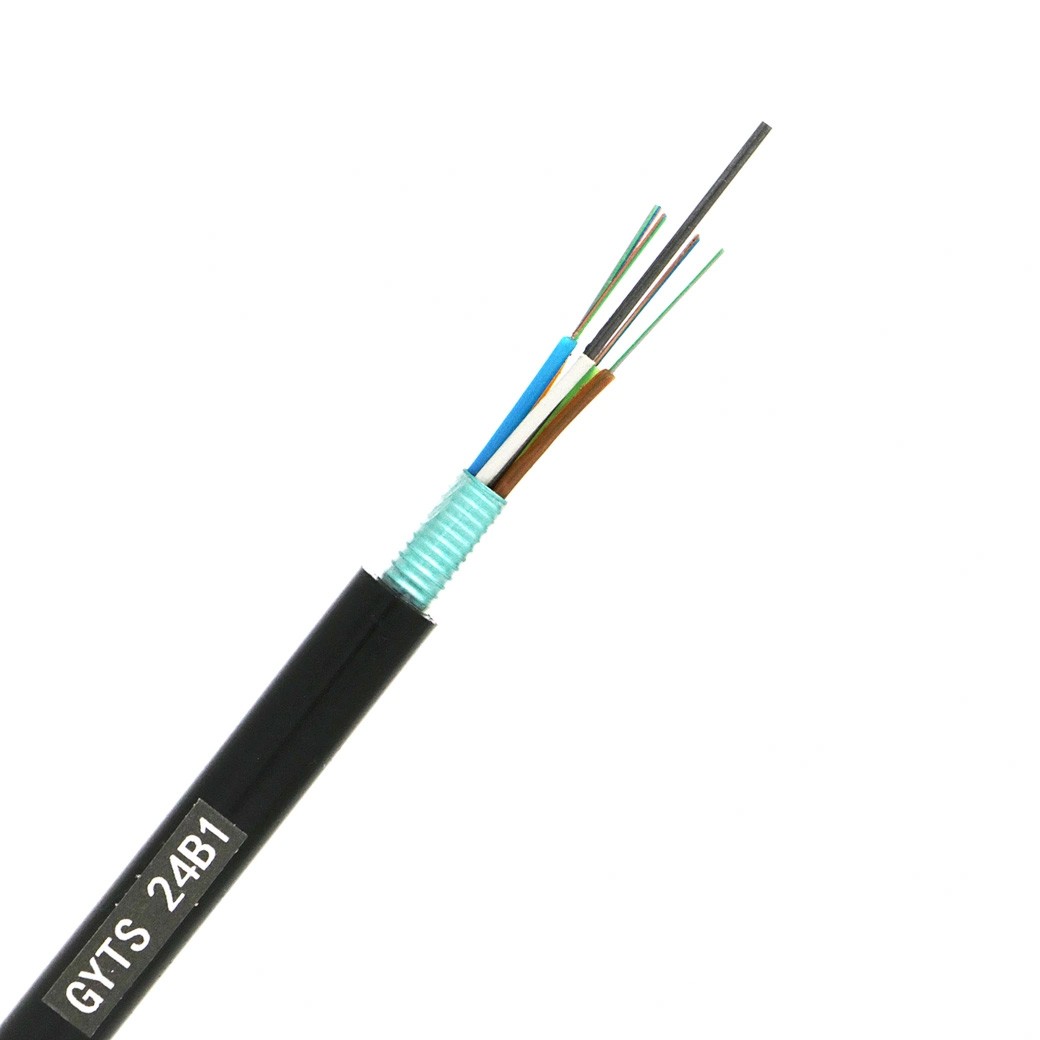

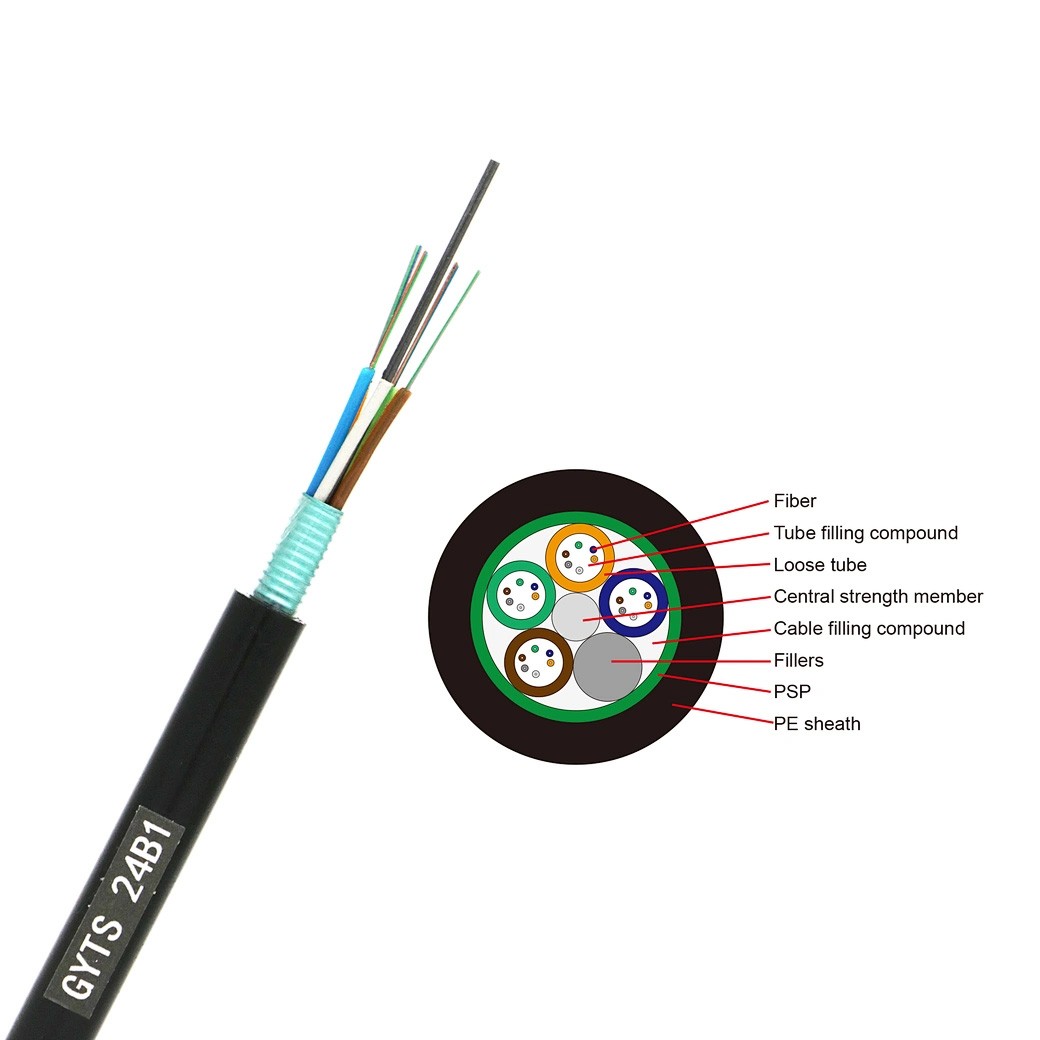

Product Name：GYTS Fiber Optic Cable

Application： Outdoor, Aerial, Duct

Color： Black Or OEM

Fiber Mode：Singlemode G652D G657A

Description

QYY- 36 48 72 96 144 288 Core Single Mode GYTS

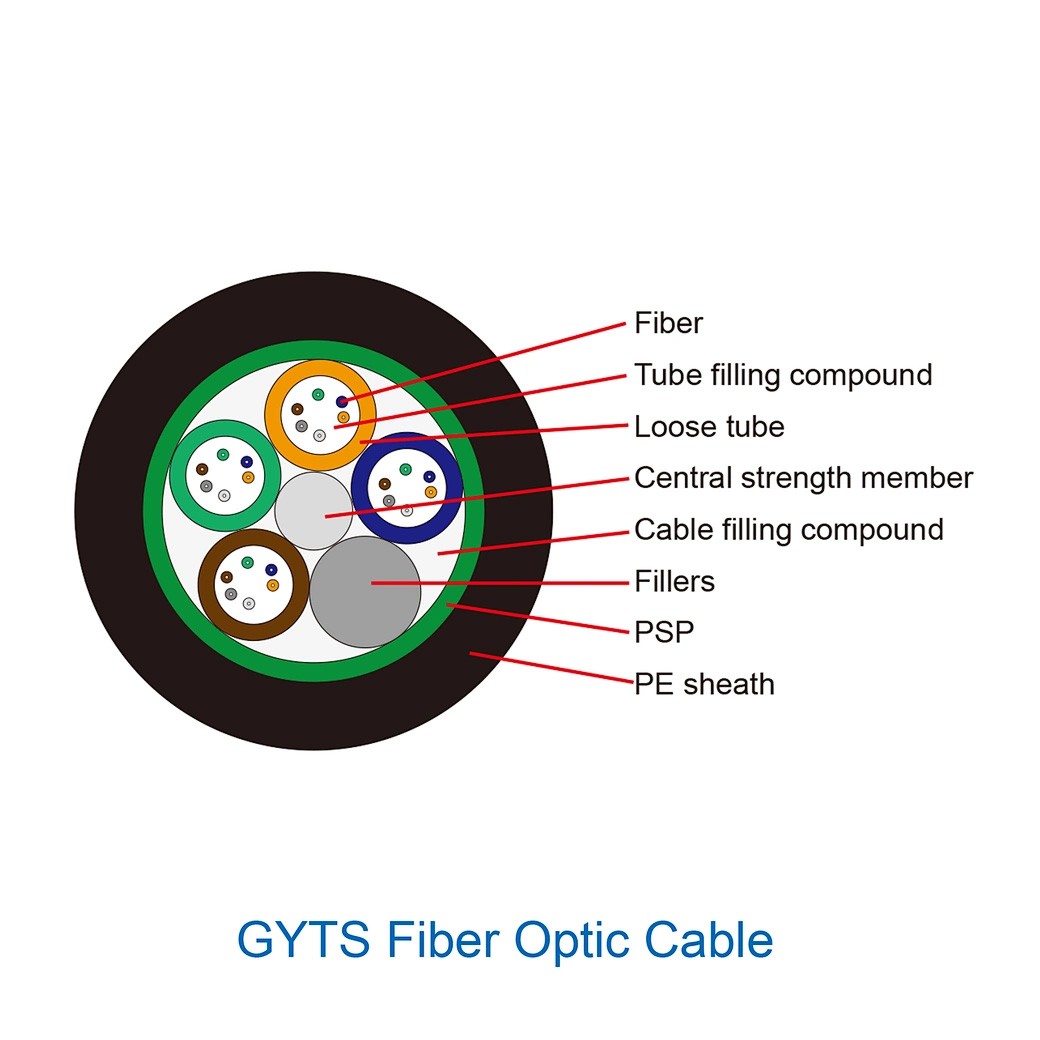

Features：

. High strength loose tube that is hydrolysis resistant
. Special tube filling compound ensure a critical protection of fiber
. Excellent crush resistance and flexibility
. The following measures are taken to ensure the cable water -proof performance
. Single Fiber Reinforced Plastic as the central strength member
. Loose tube is filled with special filling compound
. 100% cable core filling

Optical Specification：

Item		G.652	G.655	50/125um	62.5/125um
Attenuation	@850nm			≤3.0dB/km	≤3.2dB/km
	@1300nm			≤1.0dB/km	≤1.2dB/km
	@1310nm	≤0.36dB/km	≤0.40dB/km
	@1550nm	≤0.22dB/km	≤0.23dB/km
Bandwidth (Class A)	@850nm			≥500MHZ.km	≥200MHZ.km
	@1300nm			≥1000MHZ.km	≥600MHZ.km
Numerical aperture				0.200±0.015NA	0.275±0.015NA
Cable cut-off wavelength		≤1260mm	≤1450mm

Technical Specifications：

Cable Type	Fiber Count	Tubes	Fillers	Cable Diamete rmm	Cable Weight kg/km	Tensile strength Long/Short term (N)	Crush resistance Long/Short term (N/100mm)	Bending radius Static/Dynamic (mm)


GYTS-2~6	2~6	1	4	9.0	100	600/1500	300/1000	10D/20D
GYTS-8~12	8~12	2	3	9.0	100	600/1500	300/1000	10D/20D
GYTS-14~18	14~18	3	2	9.0	100	600/1500	300/1000	10D/20D
GYTS-20~24	20~24	4	1	9.0	100	600/1500	300/1000	10D/20D
GYTS-26~30	26~30	5	0	9.0	100	600/1500	300/1000	10D/20D
GYTS-32~36	32~36	6	0	9.0	100	1000/3000	300/1000	10D/20D
GYTS-38~48	38~48	4	1	9.0	100	1000/3000	300/1000	10D/20D
GYTS-50~60	50~60	5	0	9.0	100	1000/3000	300/1000	10D/20D
GYTS-62~72	62~72	6	0	9.0	100	1000/3000	300/1000	10D/20D
GYTS-86~96	86~96	8	0	13.5	192	1000/3000	300/1000	10D/20D
GYTS-134~144	134~144	12	0	16.9	227	1000/3000	300/1000	10D/20D
GYTS-204~216	204~216	18	0	16.9	240	1000/3000	300/1000	10D/20D
Operating temperature	-40~+70℃				Storage temperature	-40~+70℃
