Description

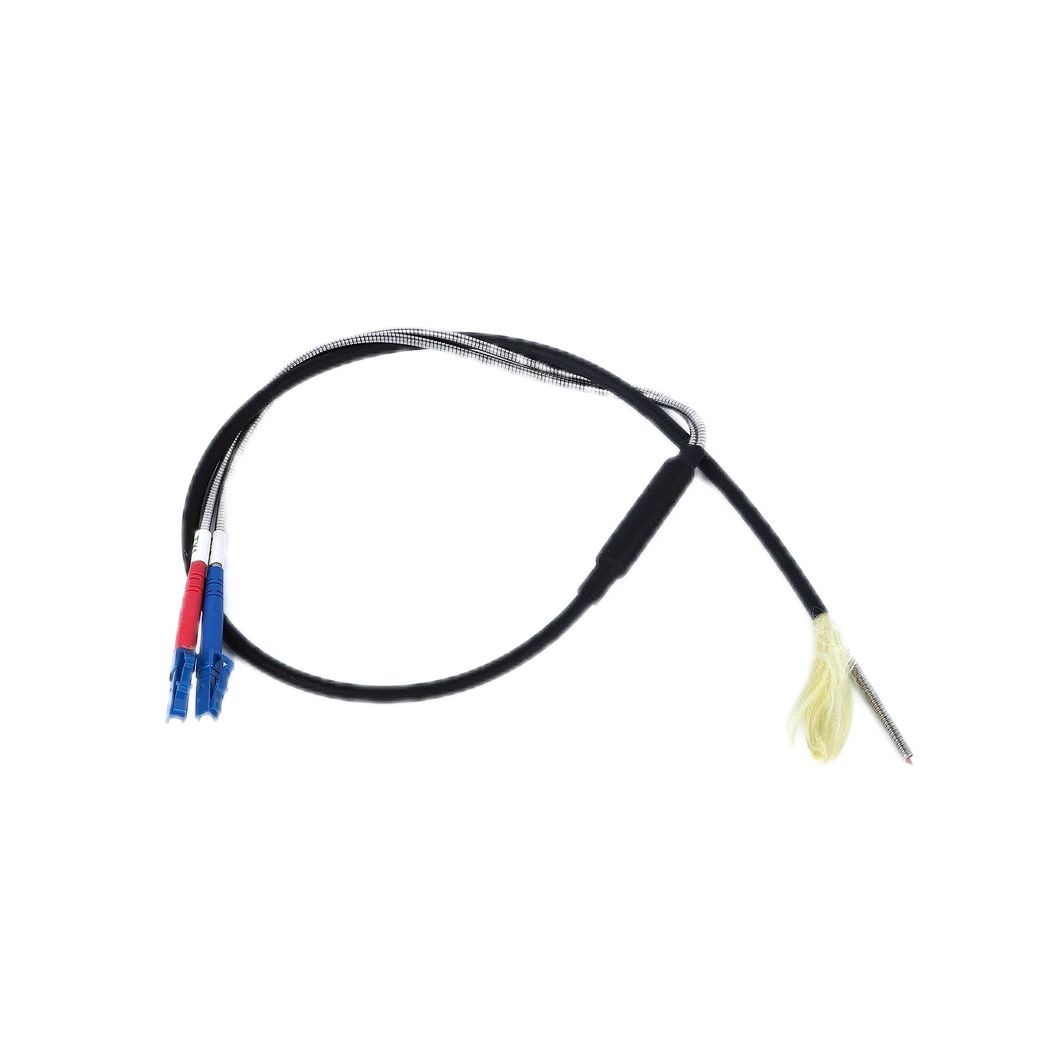

QYY- LC Anti Bite Fiber Optical Pigtail
Features:
. 3D fiber interferometer is available
. Pluggable structure, easy to intensive-installation
Applications:
Specification:
Fiber optic pigtail Technical Standard:Armored Anti Bite Fiber Optical Pigtail |
Insertion Loss: PC≤ 0.2dB, UPC≤ 0.2dB, APC≤ 0.3dB; Typical0.1dB; |
Return Loss: SM PC≥ 50dB, UPC≥ 55dB, APC≥ 65dB;
MM PC≥ 35dB, UPC≥35dB
|
Interchangeability: ≤ 0.2dB |
Salt Spray: ≤ 0.2dB |
Repeatability: (1000 times) ≤ 0.1dB |
Vibration: (550Hz 1.5mm) ≤ 0.1dB |
High Temperature: ( +85 sustain 100 hours) ≤ 0.2dB |
Low Temperature: (-40 sustain 100 hours) ≤ 0.2dB |
Temperature Circularly: (-40+85 sustain 100 hours) ≤ 0.2dB |
Humidity: (+25+65 93 R. H. 100 hours) ≤ 0.2db |
Apex Offset: 0μ m≤ ≤ 50μ m |
Radius of Curvature: 7mm≤ ≤ 25mm |
Cable Type: Simplex, Duplex, Fan-Out; |
Connector Type: LC, SC, FC, ST, MU, MPO, MTRJ, D4, DIN, SMA, FDDI, ESCON etc. |
Fiber Mode: SM (single mode) G652D, G655, G657,
MM (multimode); G651.1 (50/125, 62.5/125, 10Gb/s 50/125)
|
Cable Diameter
(mm)
Length
(meter)
Fiber Optic Patch Cord
Connector Type
Simplex/Duplex
FC
PC/UPC/APC
Φ0.9, Φ2,Φ3
Simplex/Duplex
SM/MM
Customized
SC
PC/UPC/APC
Φ0.9, Φ2,Φ3
Simplex/Duplex
SM/MM
Customized
ST
PC/UPC
Φ0.9, Φ2,Φ3
Simplex/Duplex
SM/MM
Customized
LC
PC/UPC
Φ0.9, Φ2,Φ3
Simplex/Duplex
SM/MM
Customized
MU
PC/UPC
Φ0.9, Φ2
Simplex/Duplex
SM/MM
Customized
MTRJ
PC/UPC
Φ0.9, Φ2
Duplex
SM/MM
Customized
