Description
QYY-G657A1 G657A2 1*16 PLC Splitter With SC Connector
Features:
. Low insertion loss
. Low polarization dependent loss
. High Return Loss
. Optional Split Ratio 20/80, 40/60...(50/50 as default.)
. Compact for small application areas like in closure or splice trays
. Wide Operating Temperature and Wavelength
. Excellent Environmental & Mechanical Stability
. Qualified Under Telcordia GR-1221 and GR-1209

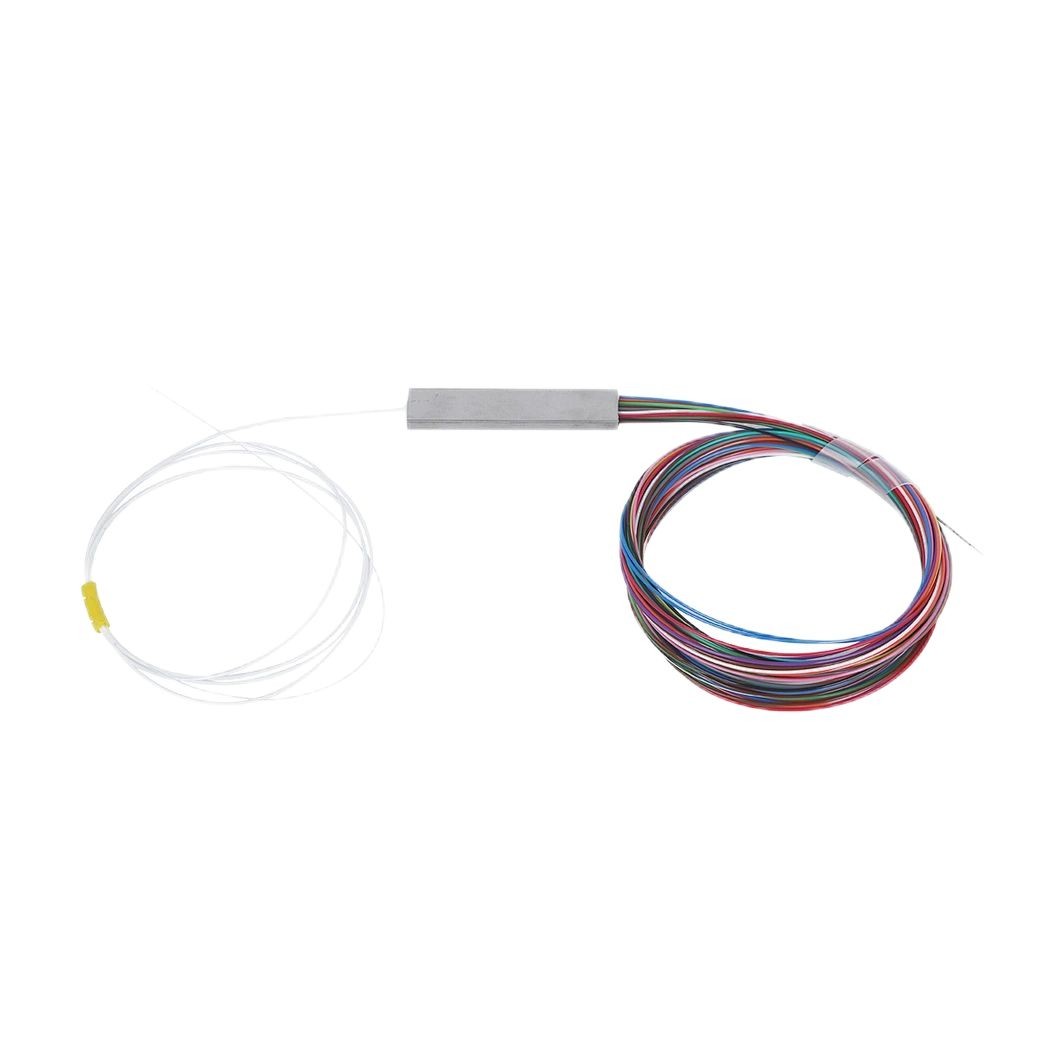

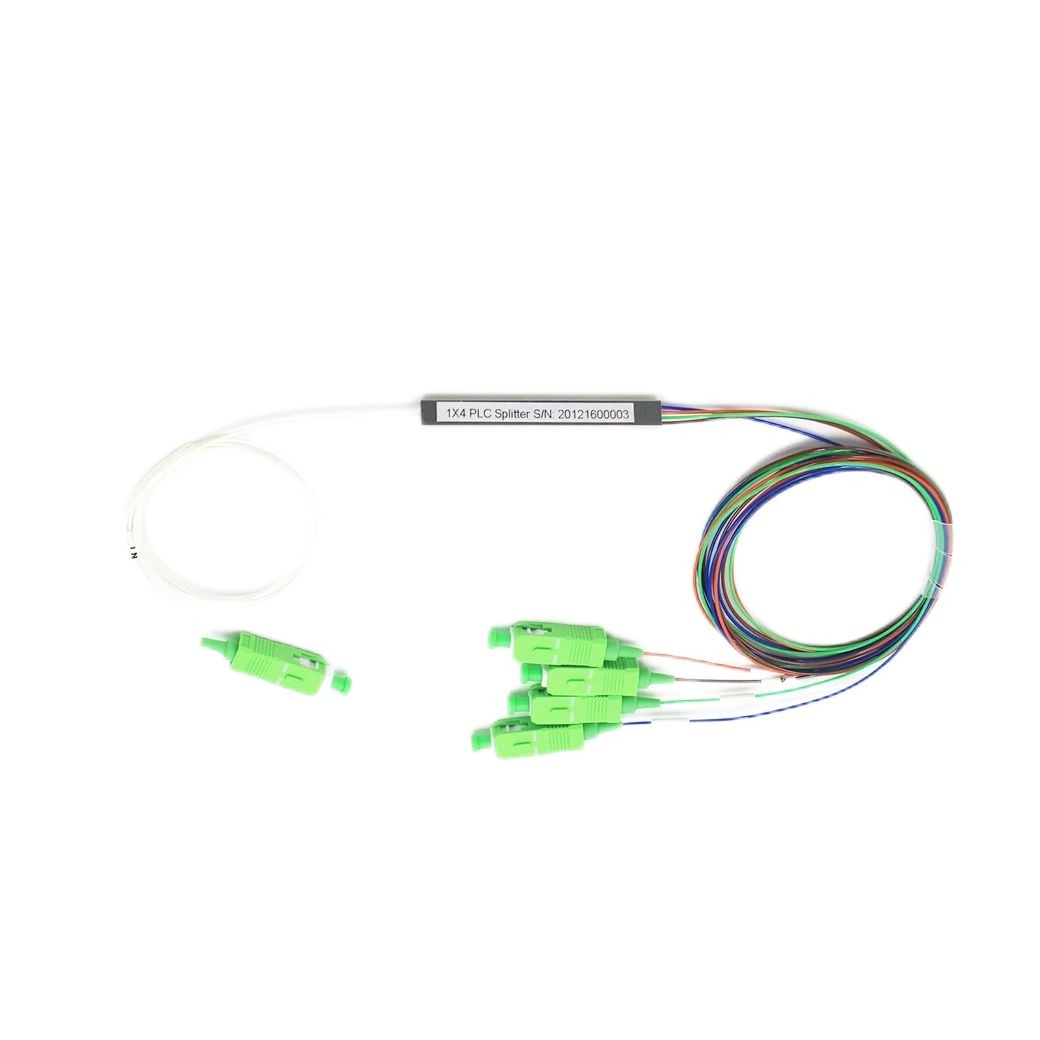

. Steel tube-compact size
Application：
. FTTX (FTTP, FTTH, FTTN, FTTC)
. Passive Optical Networks (PON)
. Local Area Networks (LAN)
. CATV Systems
. Amplifying, Monitoring System
. Test Equipments
. Order Information
. For FBT Splitters, Fiberstore provides a whole series of this kind customized for specific
Specification:
Table 1 – 1×N PLC Fiber Splitter:
Parameters
1×2
1×4
1×8
1×16
1×32
1×64
Operating Wavelength (nm)
1260～1650
Fiber Type
G657A or customer specified
Insertion Loss (dB)(P/S Grade)
3.8/4.0
7.1/7.3
10.2/10.5
13.5/13.7
16.5/16.9
20.5/21.0
Loss Uniformity (dB)
0.4
0.6
0.8
1.2
1.5
2.0
Return Loss (dB) (P/S Grade)
55/50
55/50
55/50
55/50
55/50
55/50
Polarization Dependent Loss(dB)
0.2
0.2
0.2
0.25
0.3
0.35
Directivity (dB)
55
55
55
55
55
55
Wavelength Dependent Loss(dB)
0.3
0.3
0.3
0.5
0.5
0.5
Temperature Stability(-40～85 ℃)(dB)
0.4
0.4
0.4
0.5
0.5
0.5
Operating Temperature (℃)
-40～85
Storage Temperature (℃)
-40～85

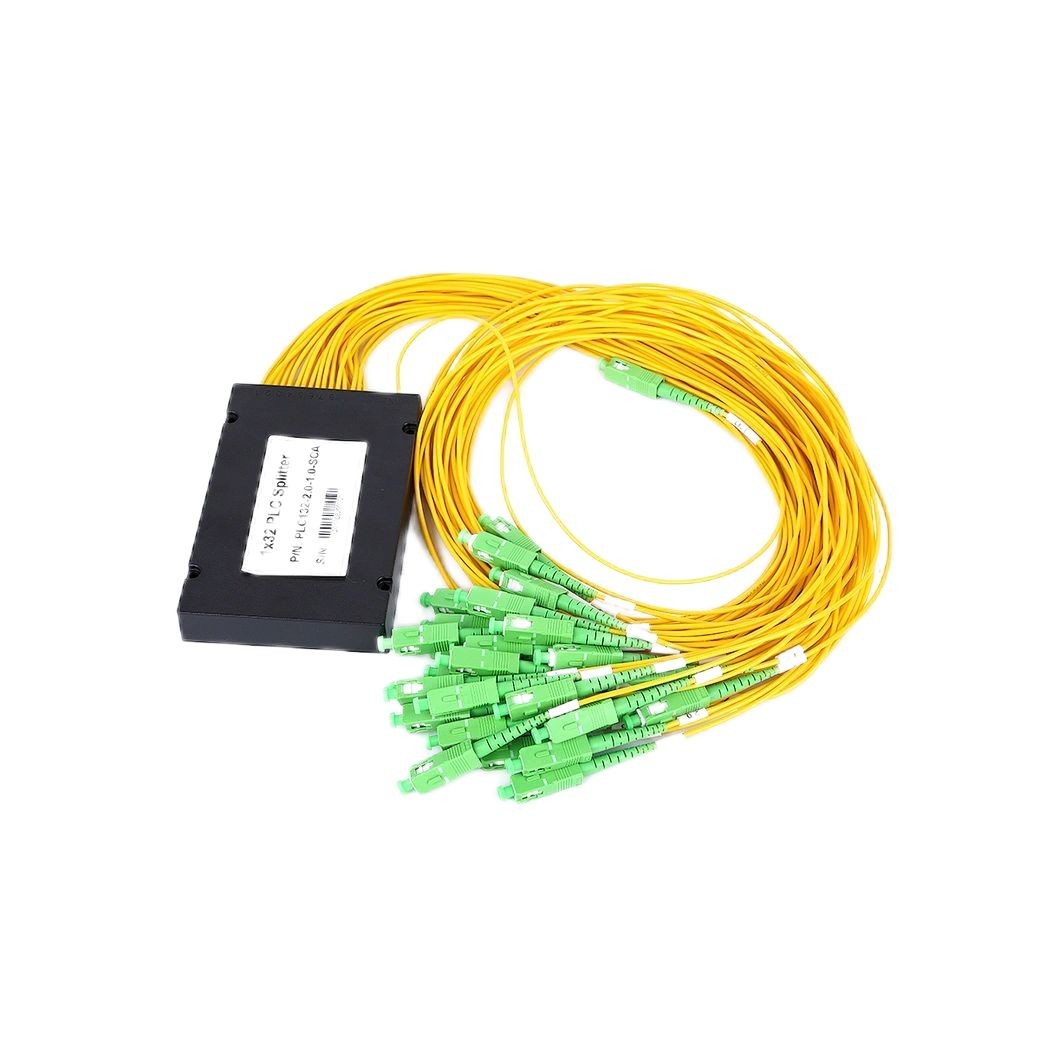

Package
Steel Tube or ABS
Order Information：
Table 2 – 2×N PLC Fiber Splitter:
Parameters
2×2
2×4
2×8
2×16
2×32
2×64
Operating Wavelength (nm)
1260～1650
Fiber Type
G657A or customer specified
Insertion Loss (dB)
4.0
7.6
11.0
14.4
17.5
21.0
Loss Uniformity (dB)
0.6
1.0
1.2
1.5
1.8
2.2
Return Loss (dB) (P/S Grade)
55/50
55/50
55/50
55/50
55/50
55/50
Polarization Dependent Loss(dB)
0.2
0.2
0.3
0.3
0.4
0.4
Directivity (dB)
55
55
55
55
55
55
Wavelength Dependent Loss(dB)
0.3
0.4
0.5
0.5
0.5
0.5
Temperature Stability(-40～85 ℃)(dB)
0.4
0.4
0.4
0.5
0.5
0.5
Operating Temperature (℃)
-40～85
Storage Temperature (℃)
-40～85
Package
Steel Tube or ABS
Notes:
Specified without connectors.
Add an additional 0.15dB loss per connector
