Description

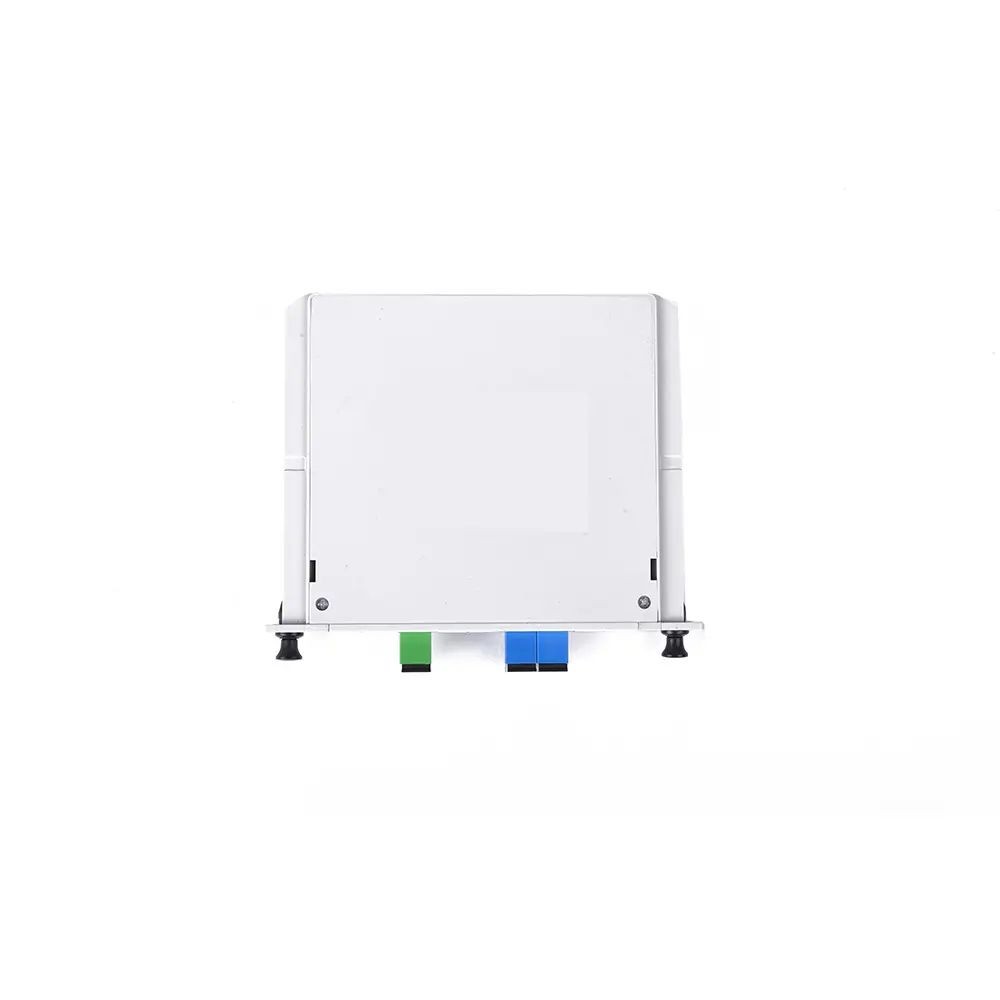

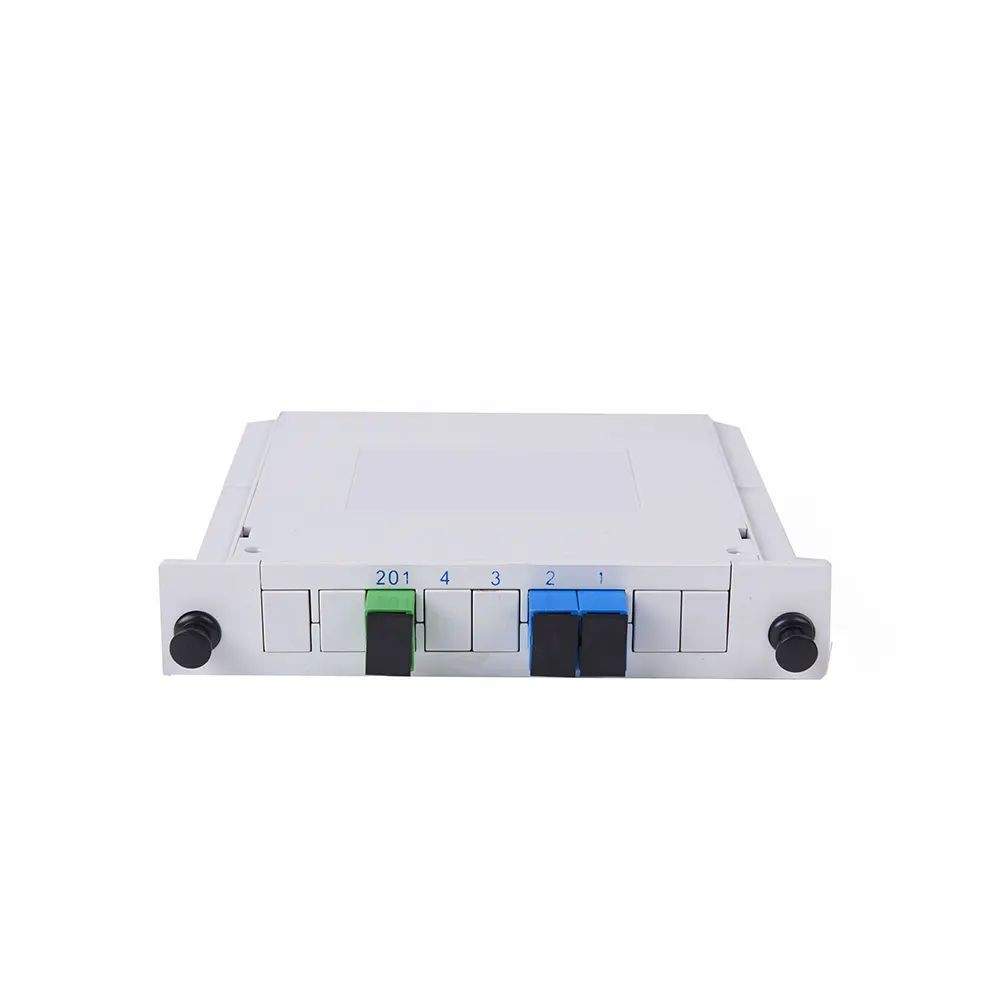

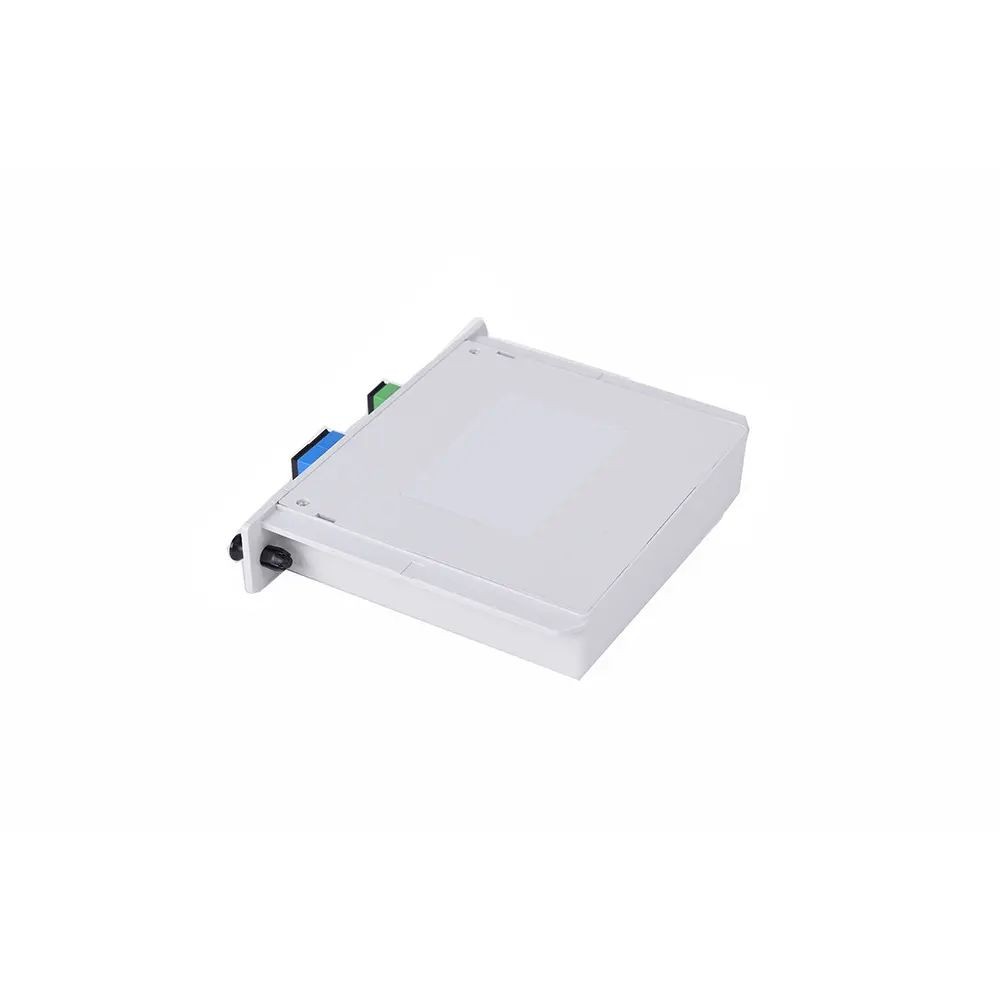

QYY- 1x2 SC/UPC Splitter LGX Box Connector
Feature:
. Low Insertion loss and PDL
. Compact Design
. Good channel-to-channel uniformity
. Wide Operating Wavelength: From 1260nm to 1650nm
. High Reliability and Stability
Specifications:
Split Ratio:1XN
Connector: SC,FC,LC,ST
There are more choice of Split Ratio
| Technical Test Data | ||||||||||
| Split Ratio | 1x2 | 1x4 | 1x8 | 1x16 | 1x32 | 2x2 | 2x4 | 2x8 | 2x16 | 2x32 |
| Wavelength | 1260~1650 (nm) | |||||||||
| Insertion Loss(dB) | ≤3.6 | ≤7.2 | ≤10.2 | ≤13.5 | ≤16.2 | ≤3.8 | ≤7.5 | ≤10.7 | ≤14 | ≤17 |
| Uniformity(dB) | ≤0.4 | ≤0.6 | ≤0.8 | ≤1.0 | ≤1.2 | ≤0.6 | ≤1.0 | ≤1.2 | ≤1.5 | ≤1.8 |
| PDL(dB) | ≤0.2 | ≤0.2 | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.2 | ≤0.2 | ≤0.3 | ≤0.3 | ≤0.3 |
| Directivity(dB) | ≥55 | |||||||||
| Operating temperature | -40~+85 | |||||||||
Application：
. CATV
. Active device termination
. Telecommunication networks
. Metro
. Local area network(LANs)
. Data Processing networks
. Test equipment
. Premise installations
. Wide area networks(WANs)
