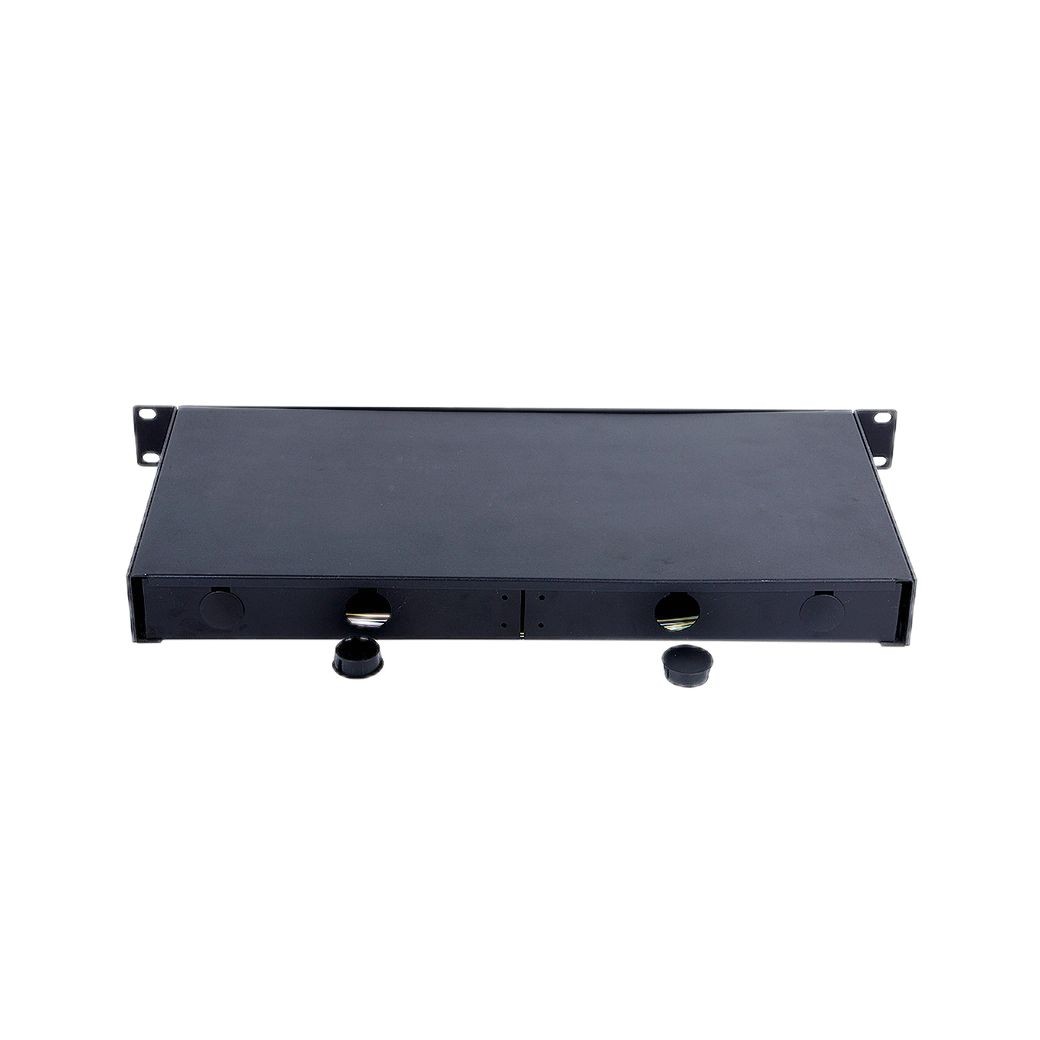

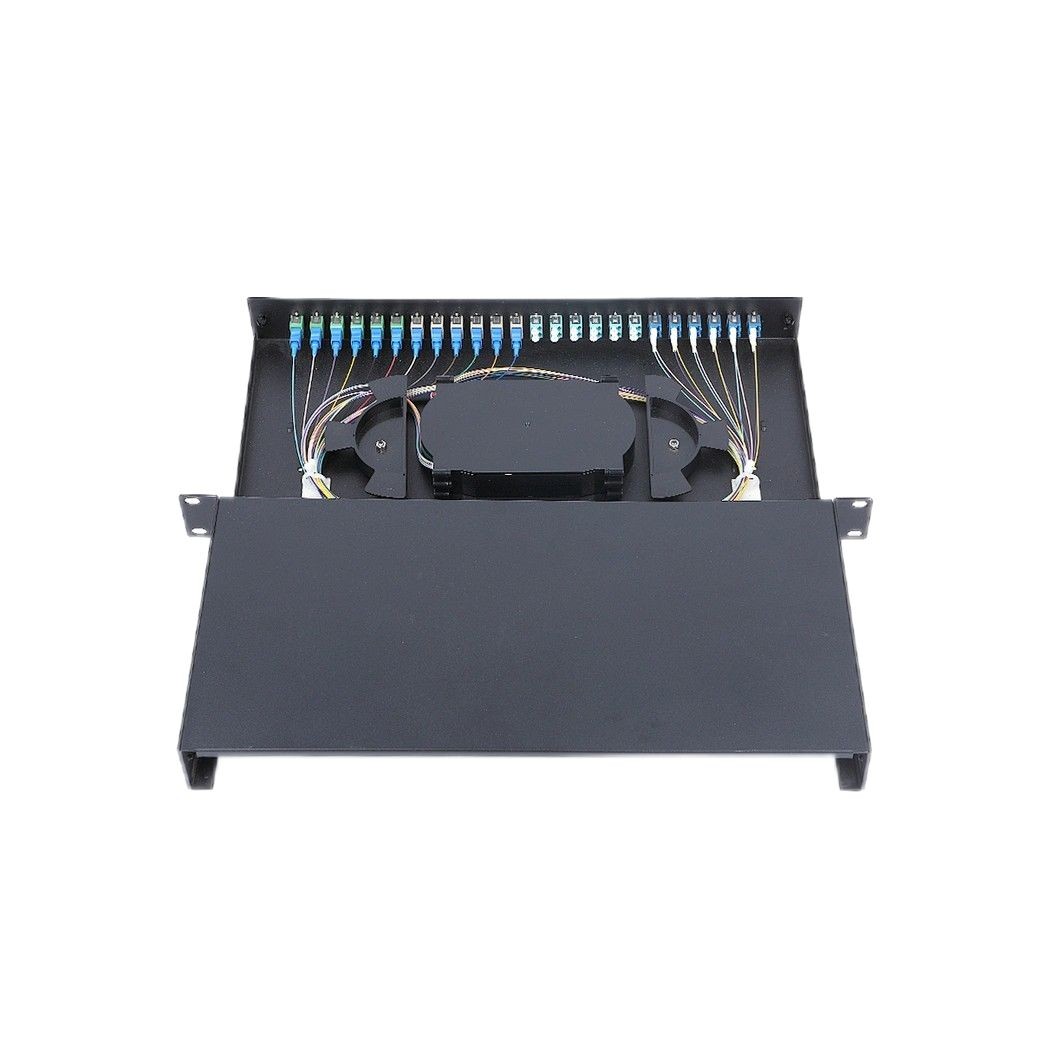

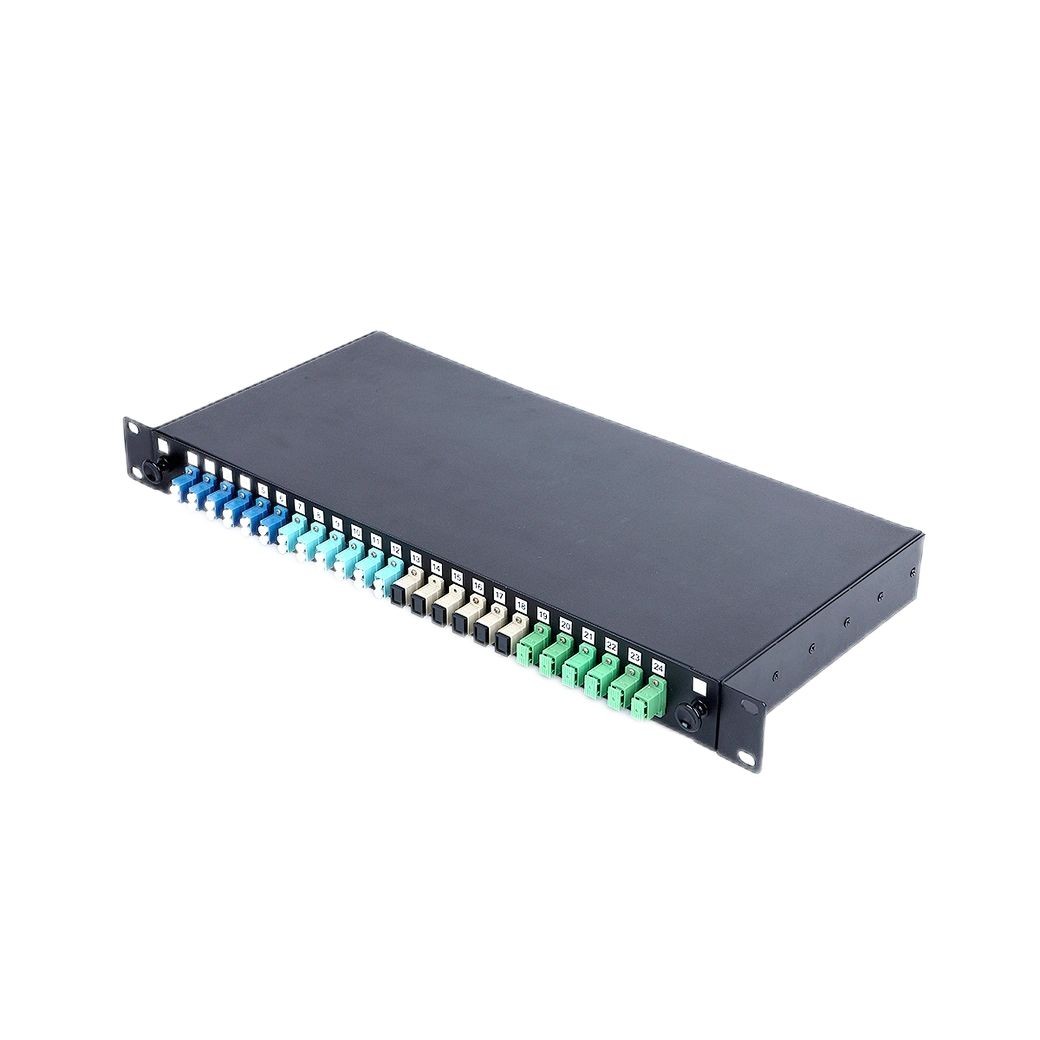

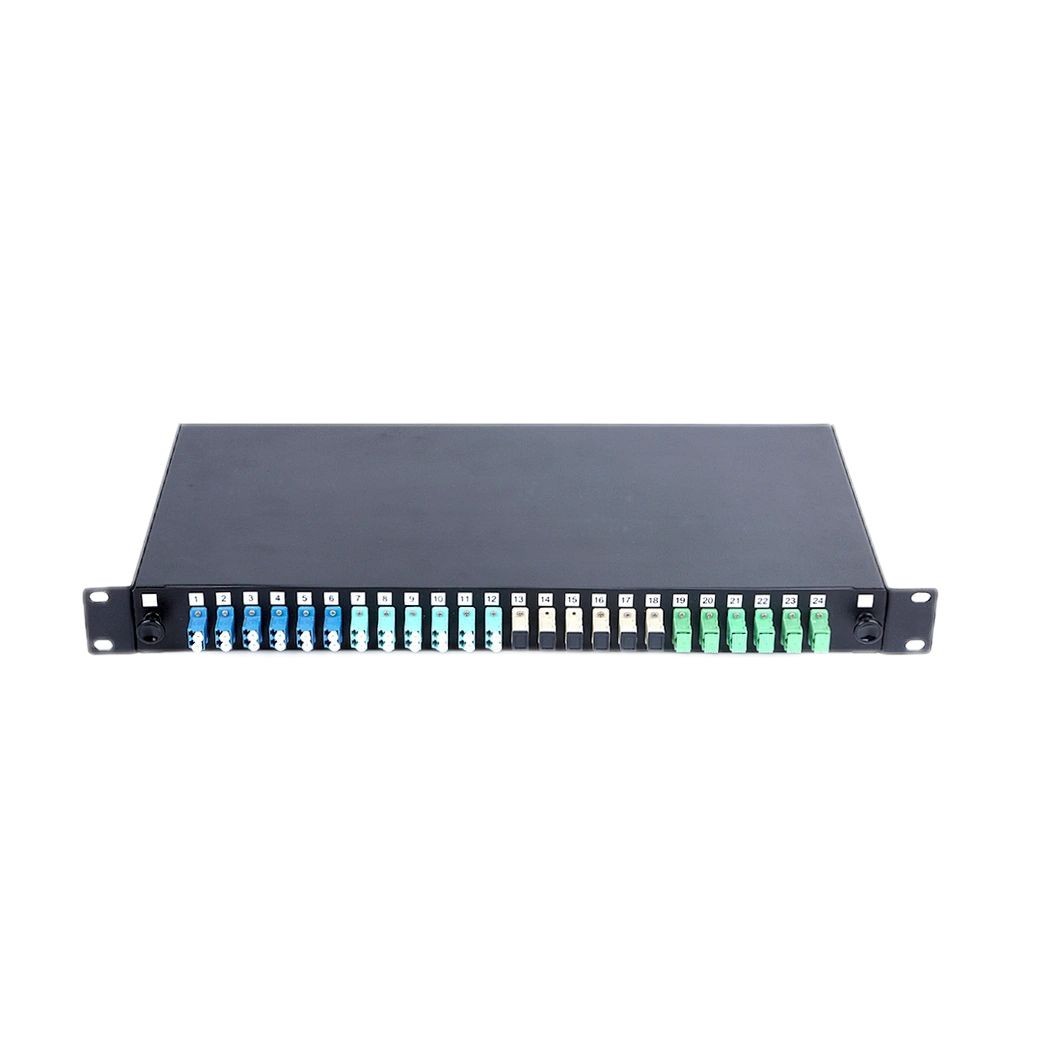

QYY- 19'' Rack Mounted Duplex Port Fixed 24 Port Lc Fiber Patch Panel

QYY- 19'' Rack Mounted Duplex Port Fixed 24 Port Lc Fiber Patch Panel

Model :Fixed Type, Slidable Type

Connector ：LC-DX

Material：Cold Rolled Steel, AL

Port ： 24

Description

QYY- 19'' Rack Mounted Duplex Port Fixed 24 Port Lc Fiber Patch Panel

Features:

. External size 480x250x1U, 2U,
. Fiber capacity from 12 cores to 48 cores
. Insertion loss: <0.3dB
. Return loss: PC< 40 dB, UPC<50dB, APC< 60dB
. Winding radius ≥40mm
. Working temperature -25°C~+45°C
. Atmosphere pressure 70~106Kpa

Application：

. Rack mount serial dustproof cover optical fiber terminal box can be applied in the storage of indoor optical cable,
. distribution and terminal of various optical fiber system.
. Revolving structure, easy for operation.
. Available for the rack installation of adaptors for FC, SC, ST, LC and so on.

Specification:

ype	OTB-RF-1UA	OTB-RF-2UA	OTB-RF-1UB	OTB-RF-1UB	OTB-RF-1UC	OTB-RF-2UC
Size(mm)	4302501U	4302501U	4822951U	320240100	350340120	350340120
Max capacity(core)	24	48	24	48	24	48
Weight(kg)	2.6	3.8	3	4	3	5
