Description
QYY- 16 Cores 1x8 Splitter Optic Fiber Distribution Box
Features：

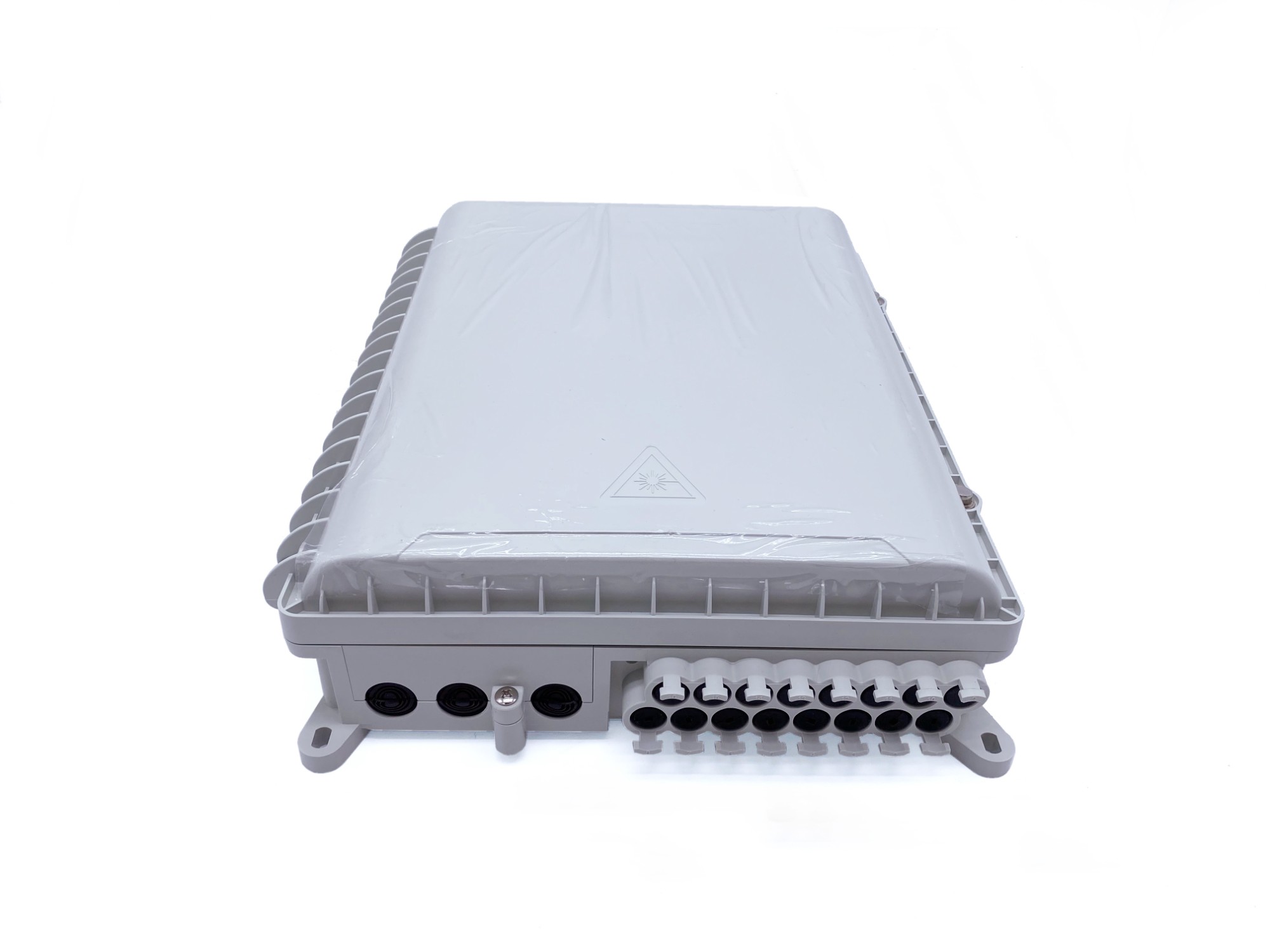

. Total enclosed structure with key and buckles
. High strength engineer plastic, wet-proof, water-proof, dust-proof, anti-aging, Resistance to chemical and U.V attack.
. Clamping for feeder cable and drop cable, fiber splicing, fixation, storage, distribution,etc all in one.

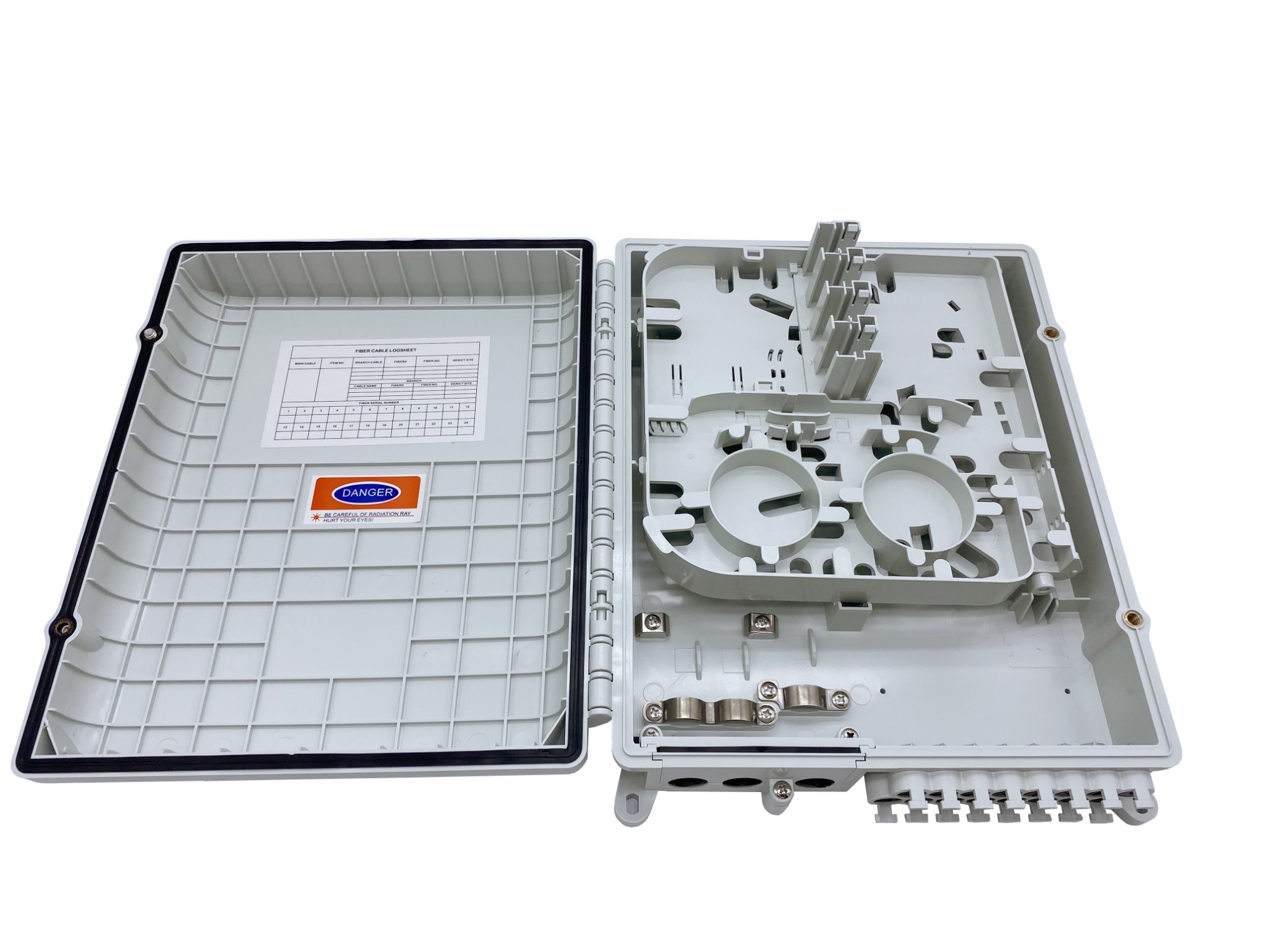

. Cable, pigtails, patch cords are running through own path without disturbing each other, cassette type SC adaptor installation, easy maintenance.

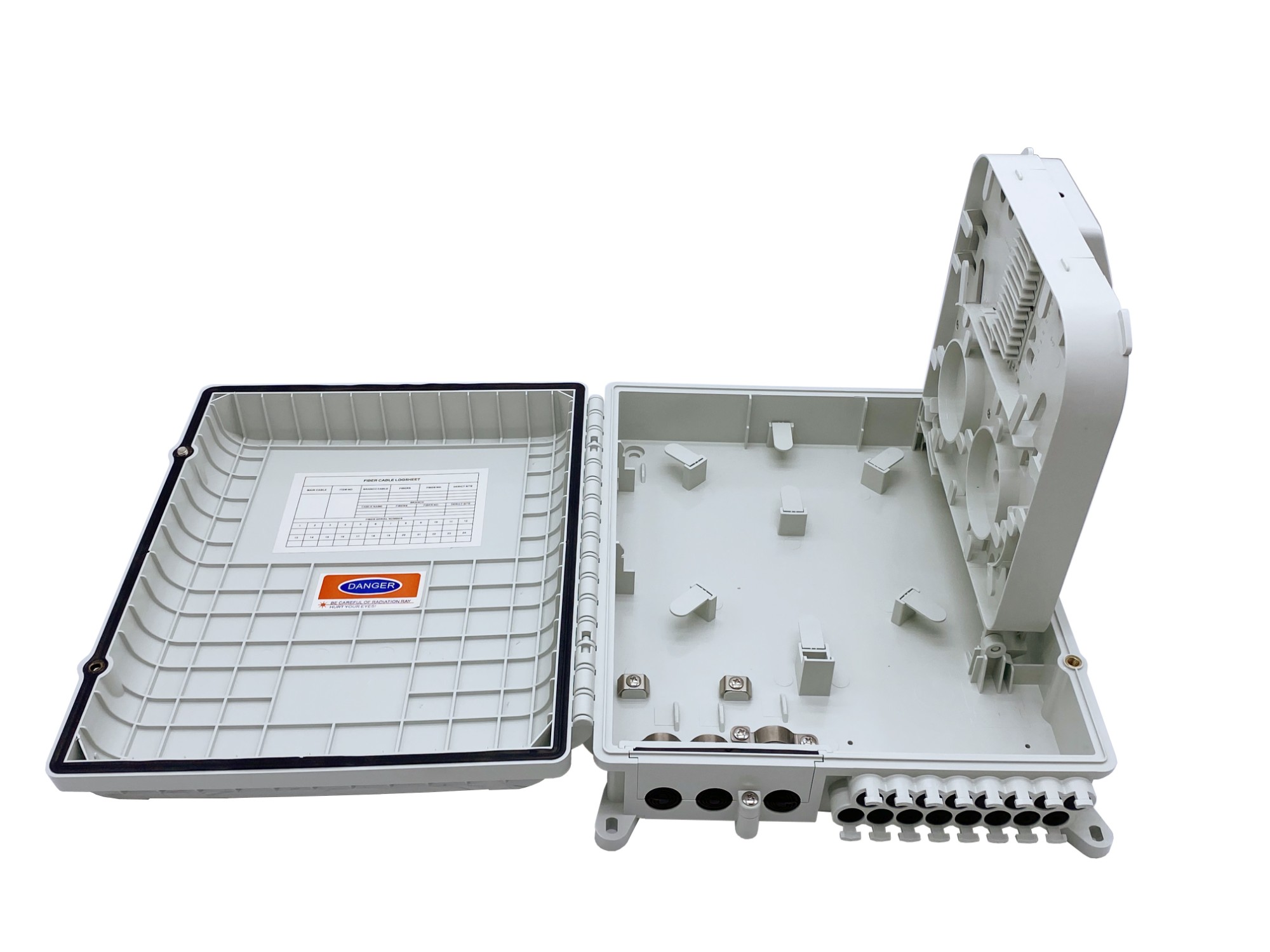

. Distribution panel can be flipped up, feeder cable can be placed by expression port, easy for maintenance and installation.
. Outdoor Wall mount or pole mount, IP65
Specifications：
| Model | FDB-16L |
| Dimension (AxBxC) | 327*258*88mm, D*E /F*G(mm):150.5*130/312*230mm |
| Max.Capacity | 16 cores (single fiber) |

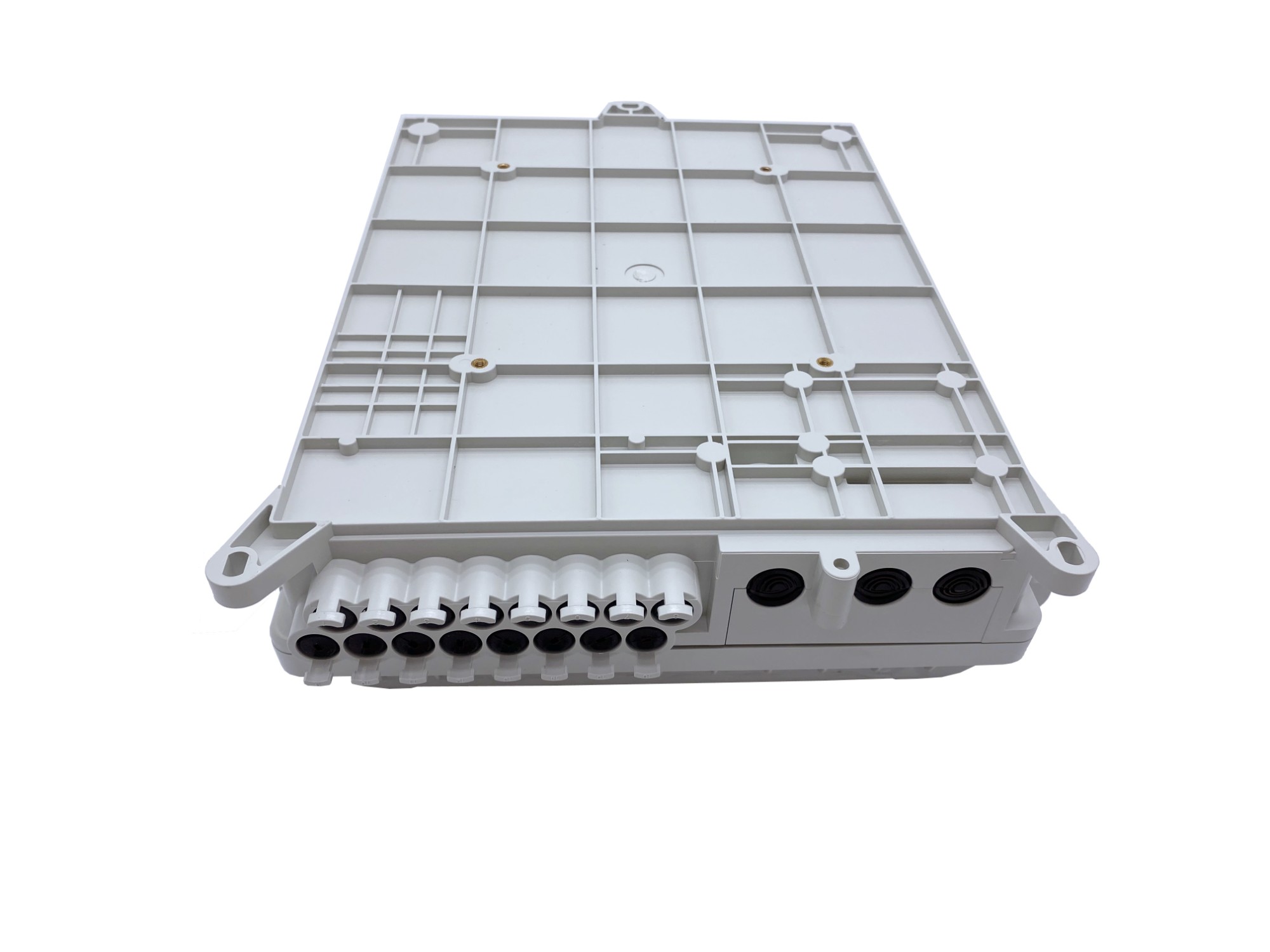

| Cable ports | 3mid span, 16out |
| Cable diameter | In:φ16mm; out:2*φ3mm |
| Splitter quantity | 1x16 or 2pc 1x8 steel tube PLC splitter |
| Adapter quantity | 16 SC/UPC or SC/APC |
| Color | Grey / black |
Application：
. Wall-mounted, Pole-mounted Installation
. Suitable for ftth pre-connectorized drop cable with SC/LC connectors
